Top Tire Jacks for Off-Road Adventures

All Jacked Up

Which Tire Jack is Right for Your Rig?

 A few years ago, I was helping lead a group trip along the Continental Divide when one of the participants badly sliced a tire on his Tacoma on a back road in Wyoming. My wife and I were riding tail gunner.

As we pulled up, the driver had already chocked the wheels, retrieved the factory scissors tire jack and had placed it under the rear axle. But he was failing completely in his efforts to raise the axle and tire, straining mightily, but futilely, on the crank handle.

Why? Because mounted on the back of the Tacoma was a four-wheeled camper—which, in turn, was loaded with water, food and supplies for a two-week trip.

We stopped, I got out my 4-ton hydraulic bottle jack, and we effortlessly lifted the truck and swapped the tire.

With very few exceptions, such as the superb, Italian-made hydraulic bottle jack that’s supplied with solid-axle Land Rovers, factory-supplied jacks are designed to minimal specs to lift the vehicle—on pavement—just high enough to change a tire. Load that vehicle up with bumpers, winches, roof racks, camping gear or a camper, and you might find that jack whimpering under the load. (Actually, you’d be the one whimpering.)

If you want something that can handle a tire change on a loaded vehicle, as well as take care of recovery duties—for example, to lift the vehicle off a high-centered situation or shovel substrate under a bogged tire or insert MaxTrax—you need to step up the game with something rated to at least half the GVWR of your rig.

Then, you have a major decision to make: Do you want to lift from up top, via a bumper or slider, or from below, via an axle or chassis?

Consider a Bumper Jack

The advantage of a bumper jack is that you don’t have to crawl under the vehicle to lift it. That’s nice for staying clean, but it’s also possibly critical if your 4×4 is buried right to the axles in sand, mud or water. With very few exceptions…factory-supplied jacks are designed to minimal specs to lift the vehicle — on pavement — just high enough to change a tire.

Disadvantages

First, your vehicle must be equipped with sturdy, recovery-capable bumpers in front and rear—and preferably with rock sliders as well—that will accept the jack’s tongue.

Second, to lift a tire off the ground with a bumper jack, you first have to cycle through the vehicle’s full suspension travel, which can mean a foot or more of wasted elevation and could leave the vehicle precariously tippy.

Finally, bumper jacks tend to be heavy and bulky.

How About an Axle/Chassis Jack?

The axle/chassis jack is compact (with the exception of the Pro Eagle); it doesn’t waste lifting height to raise a punctured tire; and, with a few accessories, it can perform a variety of recovery tasks. However, access to the underside of the vehicle is mandatory, and bottle jacks, in particular, tend to have limited lifting range—often only 6 or 7 inches, unless you buy a double-extension model, which will increase that by another 4 or 5 inches. Even so, this is still paltry when compared to the 30 inches or more of a bumper jack.

My suggestion: If you mostly need a sturdy jack for tire-changing and occasional recovery work, look at the chassis jacks here. If you like to challenge yourself and your vehicle, and you frequently find yourself a bit buried, consider making room for one of the bumper jacks or the ARB X-Jack.

Powerful hydraulics make lifting with the ARB Jack easy …… and lowering is a one-finger operation.

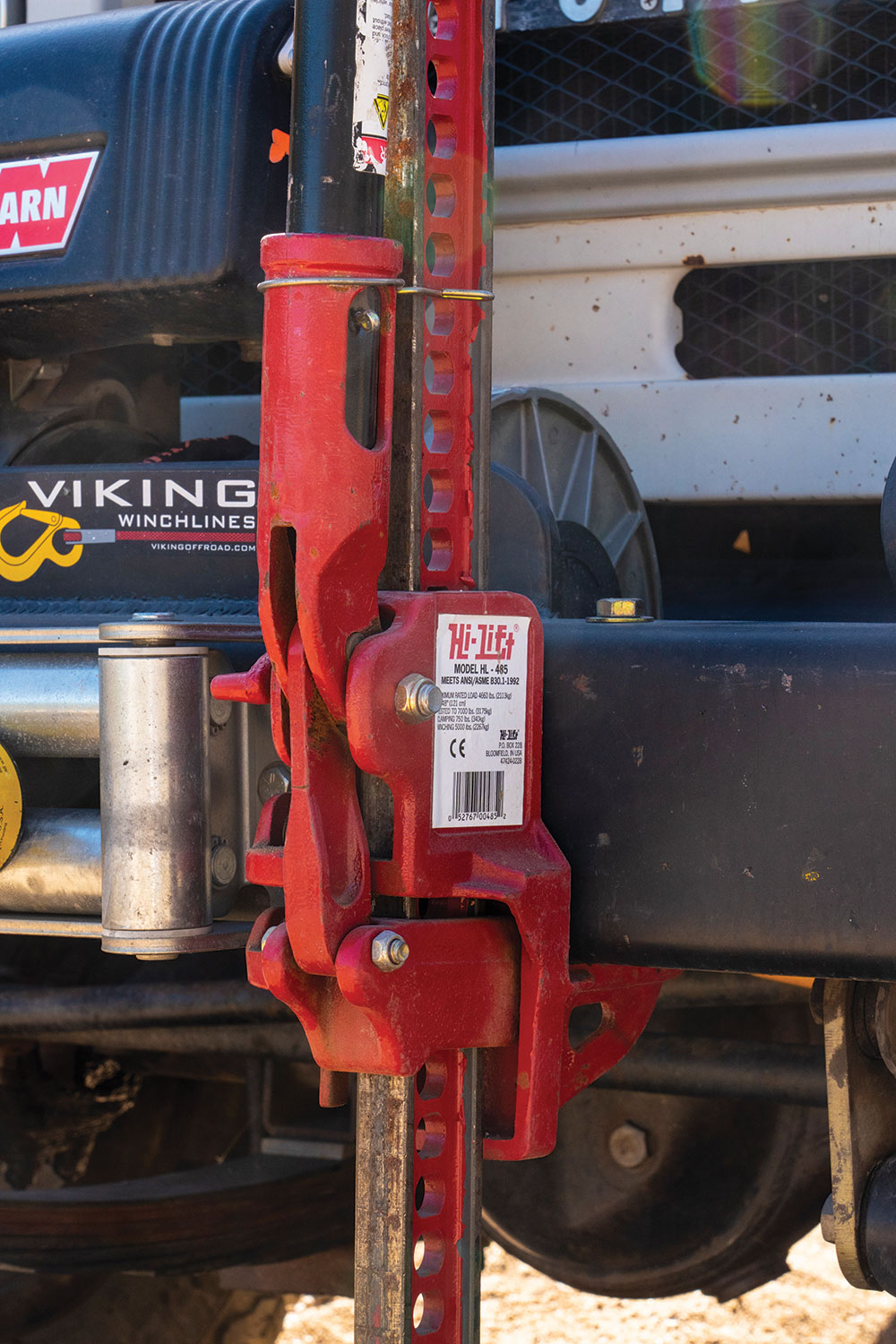

Hi-Lift Jack

How many products survive a century virtually unchanged? The antediluvian Hi-Lift still scores points in this group because of its low price, rugged simplicity, ease of refurbishment and versatility. It’s the only product here that will also function as a clamp or a (very slow) winch. The Hi-Lift’s 4,660-pound rating has become the de facto standard for competitors, and in this group, its range of lift is second only to the ARB Jack.

Downsides include the Hi-Lift’s 29-pound mass and jam-prone lifting mechanism (the latter issue is usually rectified with a dousing of almost any lubricant, including Keystone Light (according to my nephew). But the big, red flag in the Hi-Lift’s manual of arms, as anyone who’s used one knows, is the “zone of disfigurement” circumscribed by the arc the handle makes. Let your head stray inside this arc, whether you’re raising or lowering your vehicle, and you’re asking for a broken nose or jaw if you lose your grip.

MSRP: $100 (48-inch; all cast)

URL: hi-lift.com

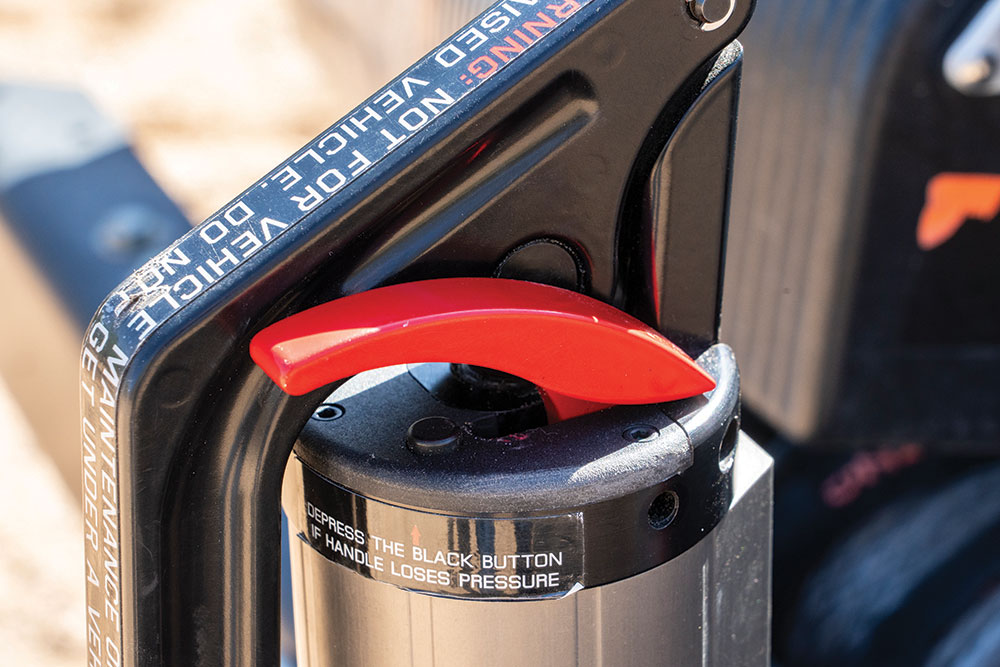

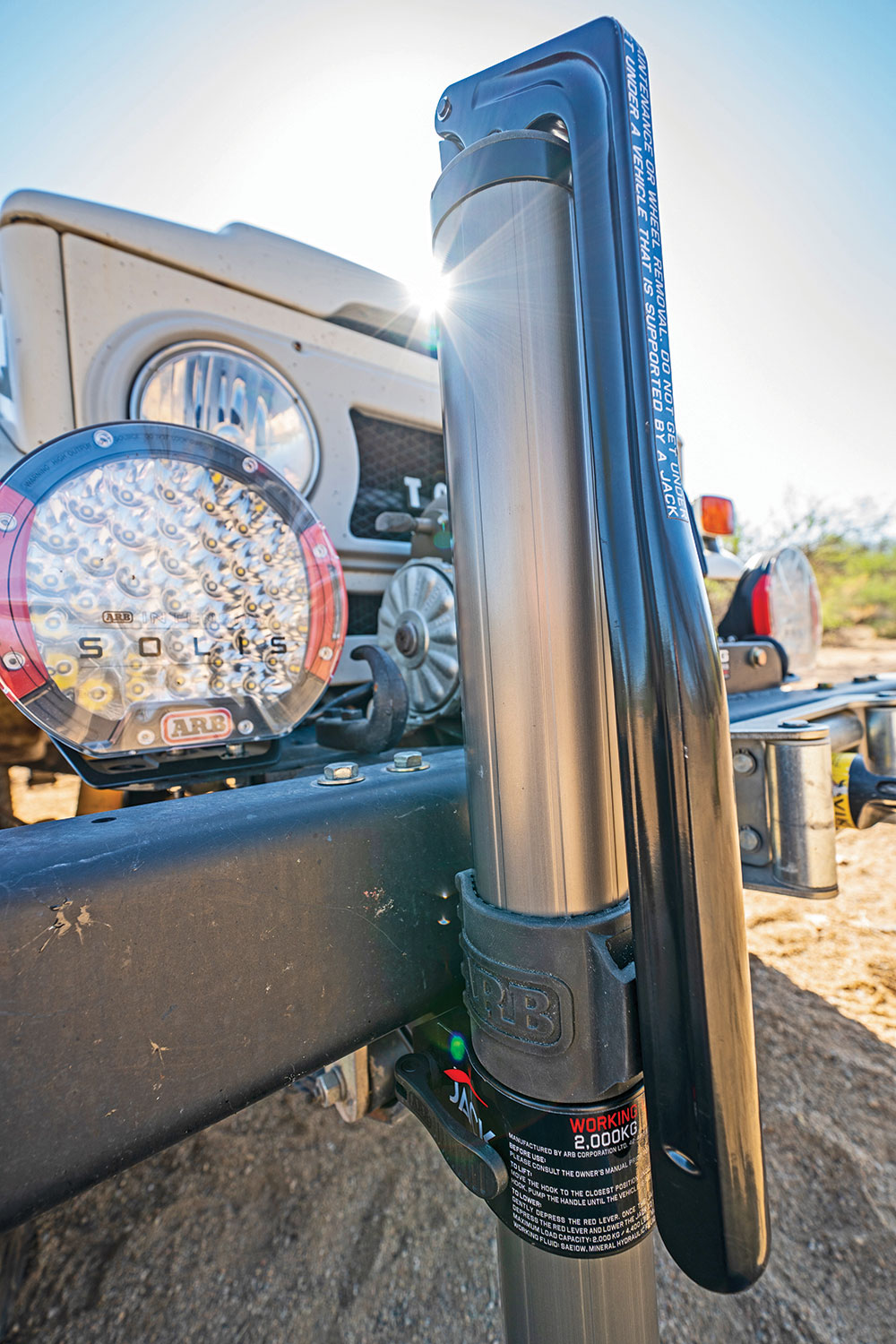

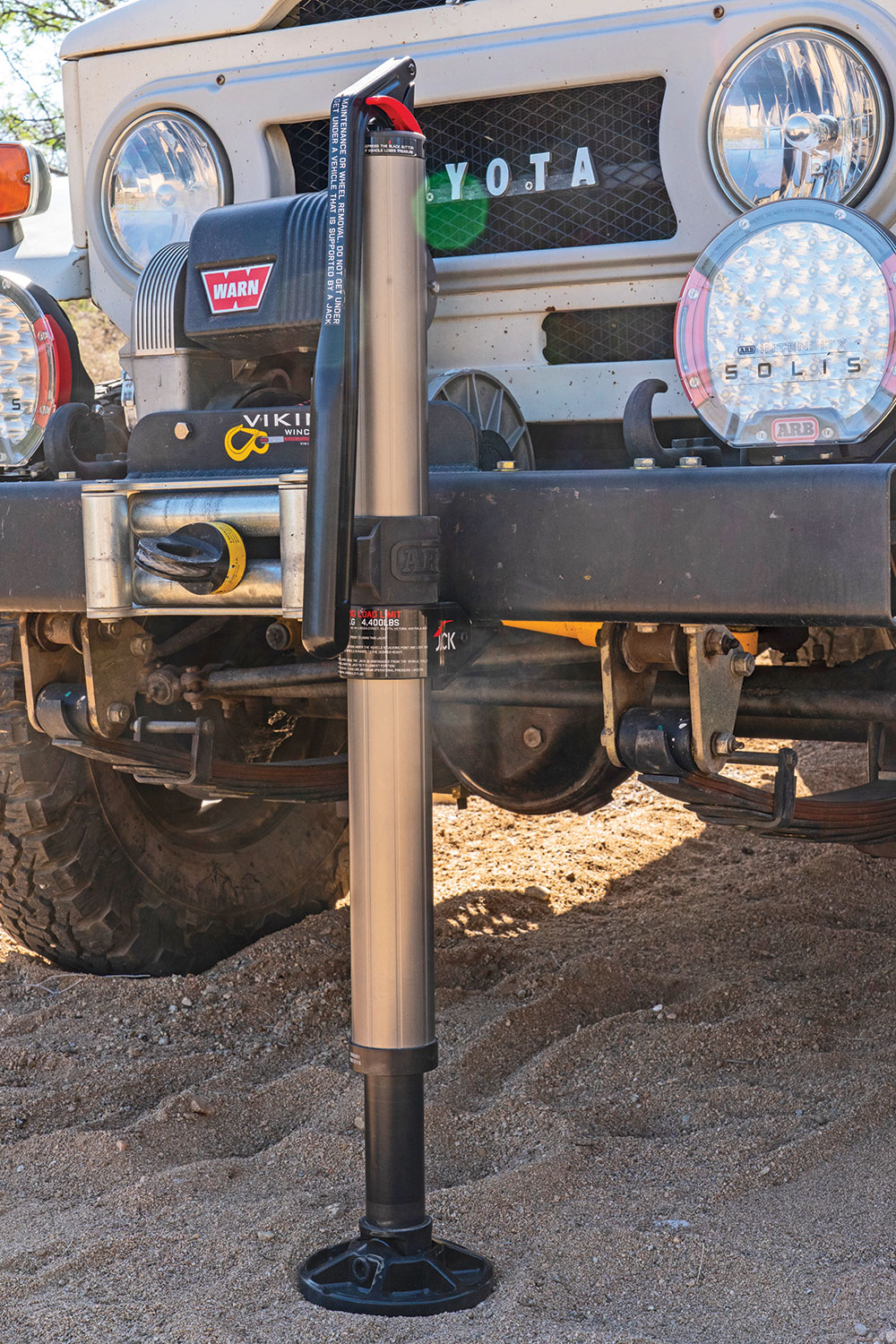

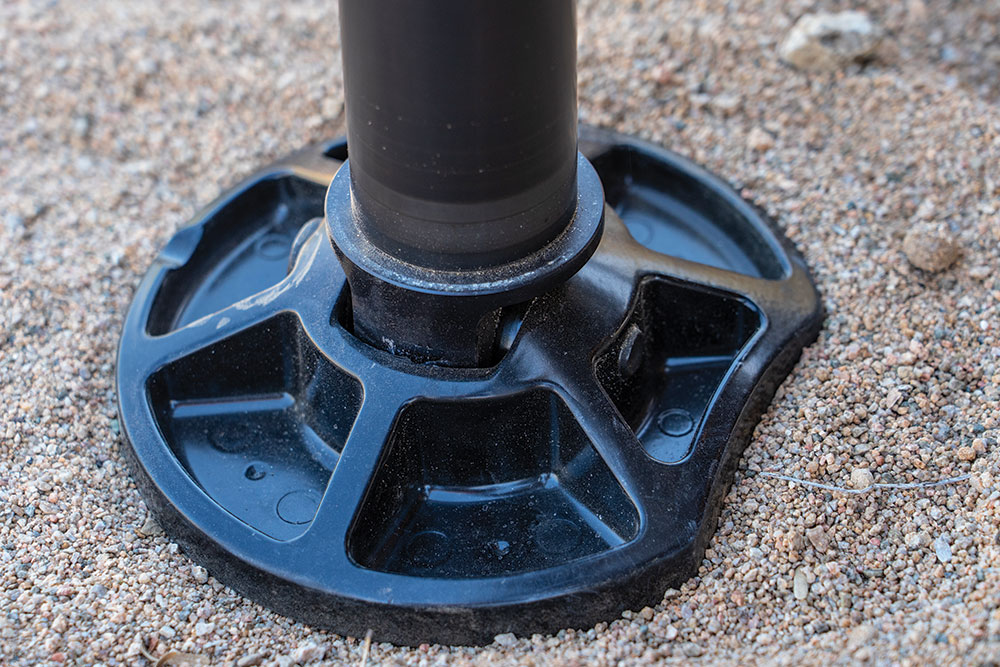

ARB Jack

Think of the ARB Jack as a Hi-Lift that went to a very expensive finishing school: The coarse, mechanical mechanism is gone, replaced with smooth and powerful hydraulics (in fact, my 110-pound wife can lift the entire loaded rear end of our 70-Series Troop carrier on her own).

At a demo I gave at the Overland Expo using the front of an FJ40, one lifelong Hi-Lift user walked up, gave the handle exactly one pump and said, “That’s all I needed to see.” He then headed for the ARB booth.

There’s zero possibility of face-altering kickback, and lowering is literally a one-finger operation. To adjust the lifting tongue to bumper height, you only have to lift the tongue, itself, to the appropriate slot on the aluminum body, leaving the full lifting range of the jack intact—up to 48 inches. It’s 15 percent lighter than a Hi-Lift and only 36 inches long in its carrying case. The sealed mechanism won’t jam in dusty conditions, and the base even has a clever cutout to facilitate breaking the bead on a tire. What’s not to like? (I just hope you’re sitting down when you see its price.)

MSRP: $833

URL: arbusa.com

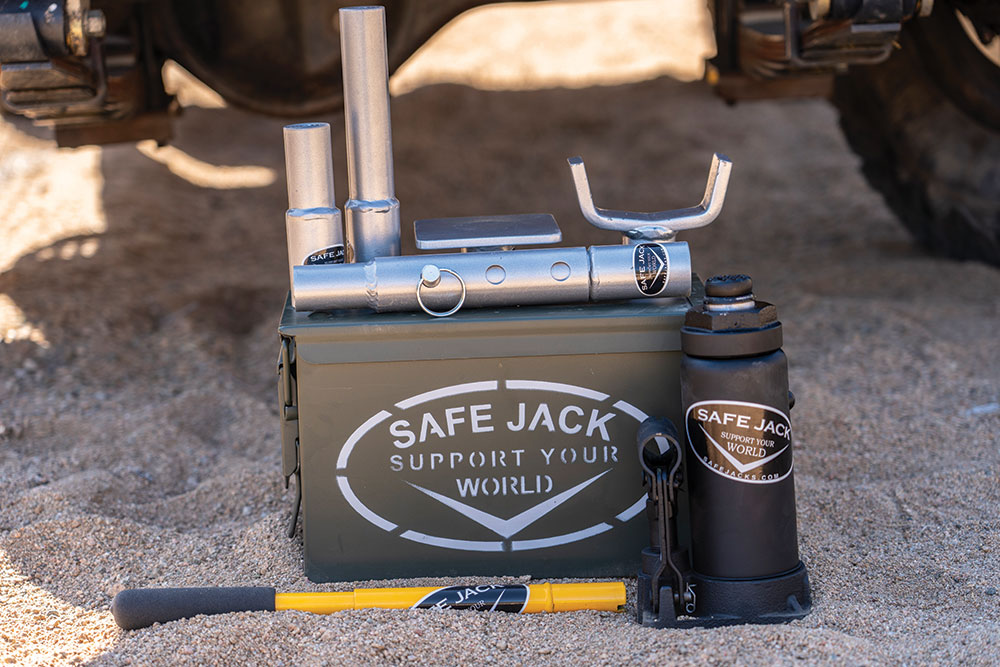

Safe Jack Bottle Jack Kit

There might be more-versatile jack systems around, but none that also fits into a .50-caliber ammo can.

The 27-pound Safe Jack “Sergeant” kit comprises a 6-ton hydraulic bottle jack, flat and curved lifting attachments, and three extension posts, one of which is adjustable. Other Safe Jack kits, from “Private” to “General,” include fewer or more extras (all of these are available separately). The range of extensions allows you to lift from an axle, the chassis or a bumper, as needed.



Its compact size limits the included jack to 6 inches of extension. However, as long as the post is compatible, you could pair the Safe Jack attachments to any bottle jack you like, such as the double-extension model I own. In fact, my Safe Jack kit hasn’t yet met a vehicle it couldn’t lift.

MSRP: $269

URL: safejacks.com

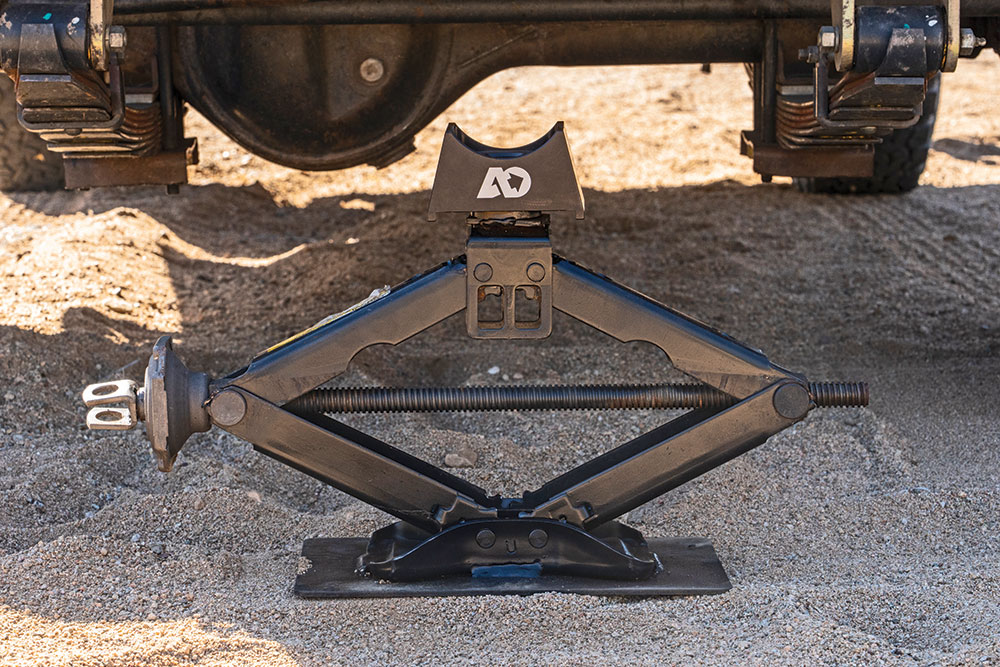

Surplus M998 Scissors Jack and Agile Off Road Chassis Adapter

Gotta love military surplus. The heavy-duty (3.5-ton) scissors jack configured to lift the front or rear A-arms of a high-mobility, multipurpose, wheeled vehicle—“Humvee” to most of us—is available by the score on eBay with a case, ratchet handle and extension rods for around $75. Add Agile Off Road’s reversible, billet-aluminum adapter, and it’ll securely support your noncombat vehicle at either the axle or chassis.

A reversible ratcheting handle means you don’t have to crank in a complete circle in a confined space (a brilliant idea), and as long as your truck weighs less than an up-armored HMMWV, this jack will lift it easily to a height of 20.5 inches with the adapter in place.

A generous, 7×12-inch base plate ensures support in Middle Eastern-theater sand (or any other kind). The lifting post on the jack has a bit of wobble built in, so Agile Off Road recommends tack-welding it to increase stability. I used it as is and had zero problems.

MSRP: $75 (scissors jack); $90 (chassis adapter)

URL: agileoffroad.com

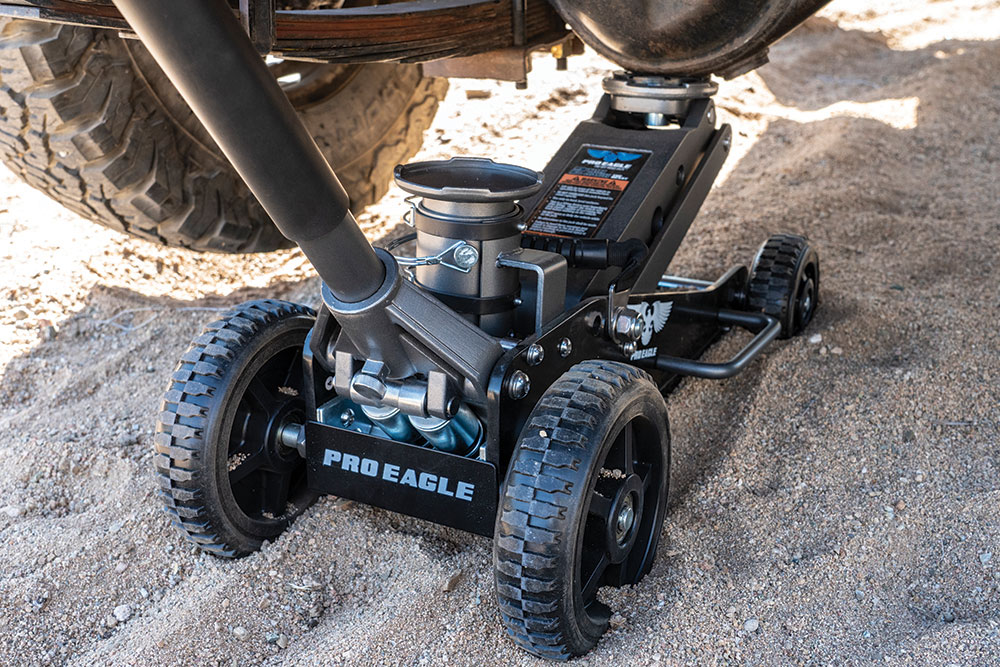

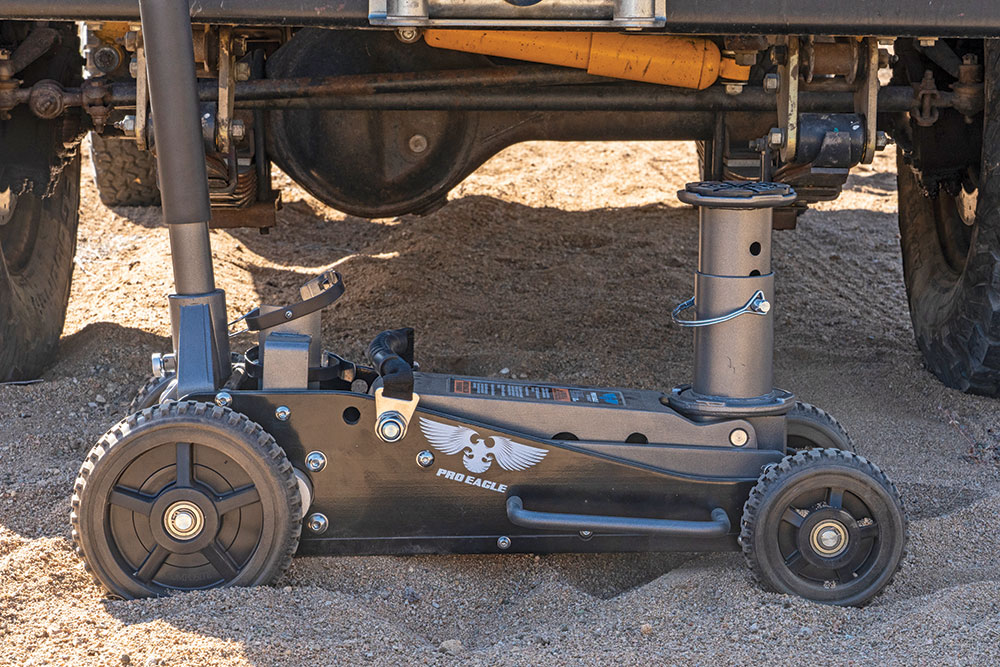

Pro Eagle Off Road Jack

A floor jack with off-road tires; why didn’t someone think of this before?

Take a 2-ton, hydraulic floor jack—the easiest way ever to lift a vehicle on a concrete driveway—add solid axles and burly, composite wheels, and you’ve got an all-terrain floor jack.

The Pro Eagle rolled over my gravel driveway effortlessly and lifted the entire front end of my FJ40 in a sandy wash without digging in more than a couple of inches. Given the fat tires, along with a full-length underbody “skid plate,” it shouldn’t sink in any substrate that doesn’t have a current. Pop on the adjustable extension post for a full 26 inches of lift height.

Safe Jack “Sergeant” kitI certainly wouldn’t carry this bulky, 52-pound jack for field duty in my FJ40, but if you’ve got a full-sized truck or Sprinter (there’s also a 3-ton version) or are traveling with a group, it’ll make any recovery a breeze. And, of course, at home, it’s an excellent shop jack.

One operational note: As with all such jacks, the lifting pad moves through an arc as it rises. If you employ the extension, and both the jack and vehicle are stationary, the extension can wind up significantly tilted. So, plan ahead.

MSRP: $440

URL: proeagle.com

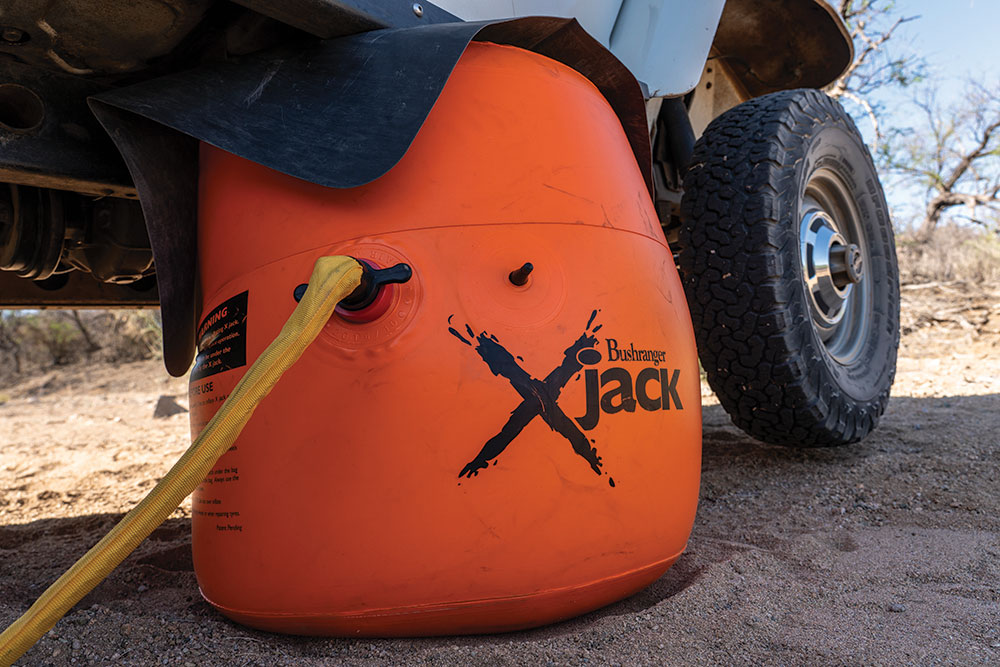

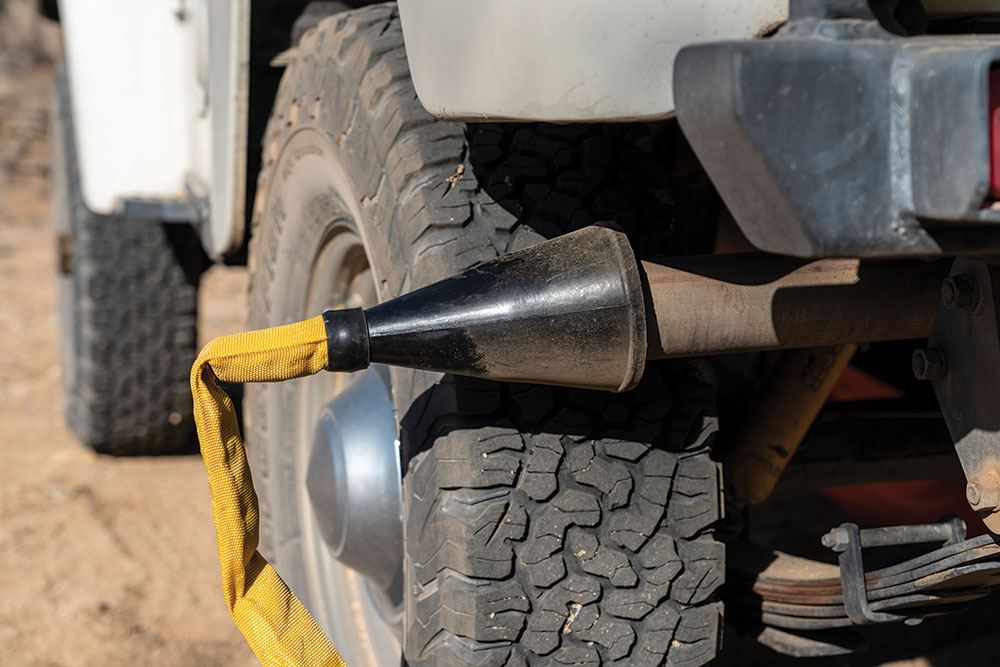

ARB X-Jack Exhaust Jack

Some of the jacks discussed here are easy to operate. Some are difficult to operate. Only one is effortless to operate.

Situate the deflated ARB X-Jack under the chassis of your 4×4. Hold the inflation cone over the exhaust pipe or connect an air compressor to the Schrader valve. The expanding bag will lift up to 4,400 pounds up to 30 inches in the air.

“If you want something that can handle a tire change on a loaded vehicle, as well as take care of recovery duties … you need to step up the game with something rated to at least half the GVWR of your rig.”

Is your truck buried to the bumpers, with no way to get a bottle jack or Hi-Lift underneath? All you need is 4 inches of scooped clearance for this jack to slide underneath. Stuck in rocks, with no secure base for a bumper jack? The X-Jack molds itself around virtually any substrate, and the hard rubber “teeth” on the bottom help prevent slippage.

Included is a thick square of guard material to protect the already-stout envelope, but it’s best to remember that this thing is still a heavy-duty balloon. Consequently, make sure to keep it away from bolt ends and hot exhaust pipes. Also remember that at full height, your vehicle is supported on air inside a flexible casing, so expect a bit of squidginess. But then, you wouldn’t get under a vehicle that’s supported only by any of these jacks, right?

MSRP: $270

URL: arbusa.com

Chocks for Tire Jacks

A jack isn’t the only item you need for safe tire changes and recovery work. You also need a way to ensure the vehicle remains stationary and doesn’t roll off the jack. Additionally, you need a way to ensure the base of the jack doesn’t sink in sand or mud.

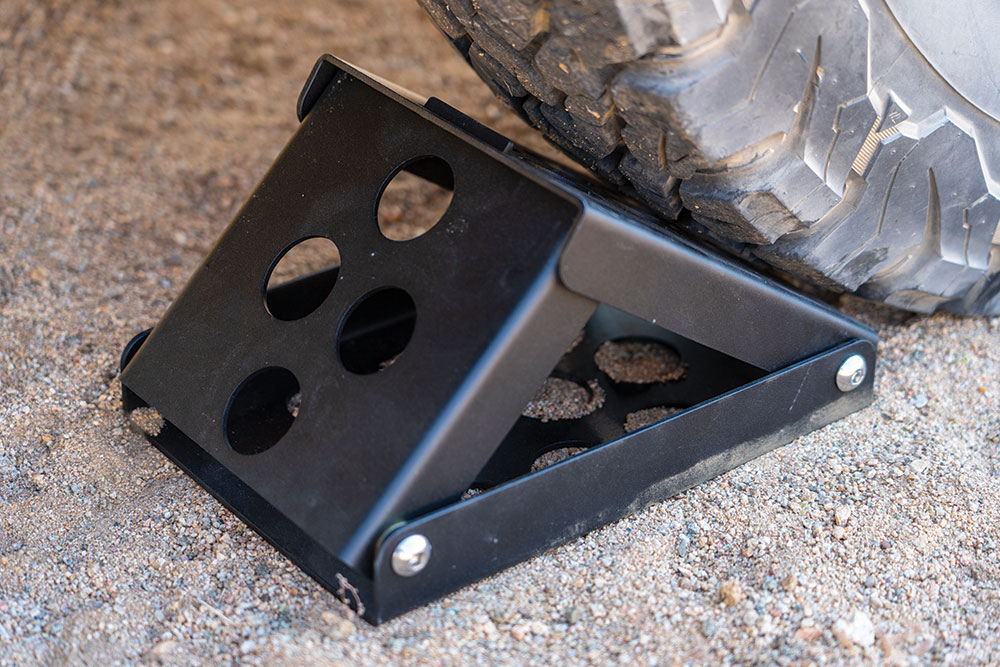

The best vehicle chocks I’ve used are the nesting units from Safe Jack, which are substantial enough to anchor the vehicle for winching, as well as jacking. In addition, the best base plate I’ve used is the ARB unit. It’s configured to accept ARB’s jack and a Hi-Lift. Very smart.





EDITOR’S NOTE: A version of this article appeared in Tread September/October 2021.

---



FREQUENTLY ASKED QUESTIONS

What is the weight capacity of the off-road jacks?

Weight Capacity of Off-Road Jacks

When it comes to off-road jacks, understanding the weight capacity is crucial for ensuring safety and efficiency during use. The typical lifting capacity for these jacks is 3 tons, which is approximately 6,000 pounds. This capacity is designed to handle a wide range of vehicles commonly used in off-road conditions.

With this impressive weight support, off-road jacks can provide the reliability you need for various tasks, from tire changes to suspension repairs. Whether you’re dealing with a lightweight SUV or a heavier off-road truck, these jacks are engineered to meet the demands of adventurous drivers.



What are the available price ranges for off-road jacks?

Available Price Ranges for Off-Road Jacks

When it comes to purchasing off-road jacks, you’ll find a variety of price ranges to suit different budgets and needs. Here’s a quick overview of what you can expect:

• Budget-Friendly Options: Prices typically start from around $50, offering basic functionality without breaking the bank.
• Mid-Range Choices: For those seeking a balance between cost and features, expect to spend between $100 and $200. These jacks often provide more durability and better performance.
• Premium Selections: If you’re looking for top-of-the-line equipment with advanced features and rugged construction, prices can range from $300 to $400.

With options spanning these price brackets, there’s a suitable off-road jack for every enthusiast, whether you’re a weekend warrior or a seasoned off-roader.



What precautions should be taken before using an off-road jack?

Essential Safety Precautions for Using an Off-Road Jack

Before operating an off-road jack, it’s crucial to take several safety precautions to ensure a secure and efficient lifting experience. Follow these guidelines to prepare properly:

1. Verify the Jack’s Capacity:
   Ensure the jack can support your vehicle’s weight. This information is usually available on the jack itself or in the accompanying manual.
2. Conduct a Thorough Inspection:
   Examine the jack meticulously for any signs of damage or wear. Do not use it if there’s any indication of mechanical compromise.
3. Check for Leaks (Hydraulic Jacks):
   If you’re using a hydraulic jack, inspect it for leaks. Refrain from using a leaking jack, as it could fail during operation.
4. Lubrication:
   Apply the recommended oil or grease to ensure smooth and safe operation, as specified by the manufacturer.
5. Handle with Care:
   Avoid dropping or throwing the jack. Such impacts could lead to cracks or damage to crucial components, affecting its reliability.
6. Personal Protective Equipment:
   Wear appropriate gear, such as off-road recovery gloves, to protect your hands during use.
7. Vehicle Stabilization:
   Ensure the vehicle is on a flat, stable surface. Avoid attempting to jack up the vehicle on slopes or uneven terrain.
8. Secure the Vehicle:
   Engage your vehicle’s emergency brake, and use wheel chocks to prevent any rolling. For added safety, place the transmission in gear if it’s manual, or in “Park” for automatic vehicles. Enable the four-wheel drive, if applicable.
9. Bystander Safety:
   Keep bystanders at a safe distance to avoid any accidents while the jack is in use.

By following these precautions, you’ll ensure a safer environment when working with an off-road jack.



How does terrain affect the suitability of different off-road jacks?

When venturing off-road, the terrain can dramatically influence which jack is most effective for your needs. Selecting the right jack involves understanding how different ground conditions impact its performance and stability.

• Sand: In sandy environments, jacks with a broad base are essential. These bases prevent sinking and provide the stability needed for safe lifting. Plate attachments can be particularly useful in these settings.
• Mud: Muddy areas demand jacks with excellent traction capabilities. Hydraulic jacks are often preferred here for their easy handling and robust support, especially when getting stuck is a frequent concern.
• Snow: When dealing with snow, portability and reliability take center stage. Look for jacks made from materials that resist freezing temperatures and offer a lightweight design for easy maneuverability.
• Rocky Terrain: On rocky surfaces, high-lift jacks are typically best. They can handle uneven ground and offer the versatility needed to accommodate the varied heights associated with such terrain.

Considering these factors ensures that your jack matches the specific challenges you might face, providing the security and efficiency you need during off-road adventures.



What are the safe jack points on an off-road vehicle?

When preparing to lift your off-road vehicle, finding the right jack points is crucial for safety and stability. Here’s a comprehensive guide to locating these essential support areas:

1. Consult Your Vehicle Manual

Your vehicle’s manual is your go-to resource for identifying factory-recommended jack points. These areas are structurally designed to support the weight of your vehicle during lifts.

2. Front Wheel Support Points

• Frame or Subframe Behind the Front Wheels: These are typically suitable for maintenance tasks like tire changes or servicing steering components.
• Independent Front Suspension (IFS) Vehicles: Utilize the point on the front crossmember.
• Solid Front Axle (SFA) Vehicles: Look for the jack point on the front axle differential housing.

3. Rear Wheel Support Points

• Frame or Subframe in Front of the Rear Wheels: Provides a secure position for lifting the rear of the vehicle.
• Rear Crossmember or Rear Axle: This central point is ideal for stable lifts when work on the back end is required.

4. Aftermarket Accessories

If your vehicle is equipped with accessories like off-road bumpers or rock sliders, these can offer additional jack points. Always refer to the manufacturer’s guidelines to ensure they are designed to handle the lifting process safely.

By understanding and correctly utilizing these jack points, you can ensure a safe and efficient lifting experience, whether you’re handling routine maintenance or addressing unforeseen issues on the trail.



How do size and weight impact the choice of an off-road jack?

Importance of Size and Weight in Choosing an Off-Road Jack

When selecting an off-road jack, both size and weight play crucial roles.

Compact and Light for Efficient Packing
Vehicles outfitted for off-roading often have limited space. Therefore, a smaller, lighter jack not only saves valuable room inside your vehicle but also makes it easier to handle when you’re in challenging terrain.

Accessibility Matters
The jack should be stored in a location that is easy to access when needed. If it’s too cumbersome, it might become a hassle to deploy during urgent situations. For those who prefer external mounting, choosing a jack specifically designed to withstand the elements is essential.

Balancing Portability with Durability
While a lighter jack eases transport, it’s crucial not to compromise on strength and reliability. A robust build that withstands rugged use is essential for performing under off-road conditions.

When evaluating your options, balance the size and weight with the durability and lifting capacity that your specific overlanding adventures demand. Brands like Hi-Lift and ARB offer various models that cater to different weight and space considerations, ensuring you find the right match for your journey.



How can cost influence the decision to purchase an off-road jack?

How Cost Impacts the Purchase of an Off-Road Jack

When considering the purchase of an off-road jack, cost is a significant factor that can influence your decision-making process. Here’s how:

1. Budget Consideration: Every buyer has a different budget, and this directly affects the range of options available. High-end off-road jacks often come with advanced features, but it’s important to evaluate whether those features align with your needs.
2. Investment in Quality: The saying “buy-once, cry-once” applies well here. Investing in a durable, high-quality jack might mean a higher initial cost, but it can save money in the long run by reducing the need for replacements. Brands like Hi-Lift and ARB are known for their reliability, often justifying a heftier price tag.
3. Safety Assurance: Cheaper jacks might look appealing at first glance, but they often lack the safety features that come with more expensive models. Spending a bit more can provide peace of mind, particularly in off-road situations where equipment failure could lead to hazardous conditions.
4. Long-Term Value: Consider the long-term value rather than just the upfront cost. A more expensive jack may offer better performance and longevity, reducing costs associated with maintenance or early replacement.
5. Resale Potential: Higher-quality jacks can retain their value better, offering a better resale opportunity if you ever decide to upgrade or sell your gear.

In summary, while you don’t need to empty your wallet for an off-road jack, balancing cost with quality, safety, and long-term value is crucial in making a savvy purchasing decision.



What steps should be followed while using an off-road jack to ensure safety?

A jack isn’t the only item you need for safe tire changes and recovery work. You also need a way to ensure the vehicle remains stationary and doesn’t roll off the jack. Additionally, you need a way to ensure the base of the jack doesn’t sink in sand or mud.

The best vehicle chocks I’ve used are the nesting units from Safe Jack, which are substantial enough to anchor the vehicle for winching, as well as jacking. In addition, the best base plate I’ve used is the ARB unit. It’s configured to accept ARB’s jack and a Hi-Lift. Very smart.

Essential Safety Steps While Using Your Off-Road Jack

• Never position yourself under a vehiclesupported only by an off-road jack. Always have a way to operate the jack without getting underneath, using a long handle or jack shaft to keep limbs clear.
• Secure Jack Positioning: Place the jack under a reliable vehicle jack point that can carry the load securely.
• Stability on Soft Terrain: If you’re working on sand or mud, use a wide stabilizer, like an off-road jack base, to prevent the jack from sinking.
• Safe Operating Position: Stand to the side while using a recovery or farm jack to avoid being hit by the handle.
• Monitoring Load Shifts: If the load shifts or the jack starts to lean, stop immediately and reposition for safety.
• Double-Check Before Finalizing: Reassess the jack’s position before completing the lift and, if applicable, remove the jack handle once the lift is done.
• Lift Moderately: Only lift the vehicle as high as necessary to complete your task.
• Use Additional Supports: Always stabilize the lifted vehicle with wheel blocks and jack stands. Consider placing a removed wheel under the vehicle frame or axle as an extra safety measure.

These steps ensure that every part of the jacking process is as secure as possible, providing peace of mind when you’re out on the trails. Pairing these safety measures with quality chocks and base plates will keep your vehicle steady and your off-roading adventures safe.



How is the capacity of an off-road jack determined and why is it important?

“If you want something that can handle a tire change on a loaded vehicle, as well as take care of recovery duties—for example, to lift the vehicle off a high-centered situation or shovel substrate under a bogged tire or insert MaxTrax—you need to step up the game with something rated to at least half the GVWR of your rig.”

Understanding the capacity of an off-road jack is crucial for both safety and functionality. The capacity is essentially the weight the jack can safely lift, often specified in tonnage (e.g., 4 ton) or pounds. Knowing your vehicle’s Gross Vehicle Weight (GVW) is the first step in selecting the right jack. You can determine the GVW by weighing your fully-laden vehicle at any certified CAT scale. This ensures you’re choosing a jack that can support the necessary weight.

Remember, the jack doesn’t usually lift the entire vehicle’s weight. Some weight remains on the tires, and if you’re using multiple jacks, the load is distributed between them. By aligning your jack’s capacity with these factors, you ensure that it not only meets your needs for tire changes and recovery operations but does so safely and effectively.



How does weight distribution affect jack usage?

Weight distribution affects jack usage because the jack generally won’t lift the entire vehicle’s weight. Some weight remains on the tires, and if using more than one jack, the weight is shared among them, impacting how you select and use the jacks.



Why is it important to know the GVW of your vehicle?

Knowing the GVW is essential because it provides a basis for selecting a jack that is adequately rated, ensuring it can lift your vehicle safely without being overloaded.



How can one determine the appropriate jack capacity for their vehicle?

To find the right jack capacity, you should determine your vehicle’s Gross Vehicle Weight (GVW) by using a certified scale. This information helps in choosing a jack that can handle the weight safely.



What is the capacity of an off-road jack?

The capacity of an off-road jack refers to the maximum weight it can safely lift, typically expressed as a tonnage rating or in pounds.



What are air jacks and exhaust jacks, and what are their advantages and disadvantages?

ARB X-Jack Exhaust Jack

Some of the jacks discussed here are easy to operate. Some are difficult to operate. Only one is effortless to operate.

Air jacks, also known as exhaust jacks, are invaluable tools for off-road vehicle recoveries in soft terrain conditions. These versatile jacks feature a thick, multi-layer rubberized canvas bag that inflates to lift vehicles, utilizing either exhaust gases or an air compressor. This capability makes them ideal for scenarios where traditional jacks falter.

Situate the deflated ARB X-Jack under the chassis of your 4×4. Hold the inflation cone over the exhaust pipe or connect an air compressor to the Schrader valve. The expanding bag will lift up to 4,400 pounds up to 30 inches in the air.

“If you want something that can handle a tire change on a loaded vehicle, as well as take care of recovery duties … you need to step up the game with something rated to at least half the GVWR of your rig.”

Advantages of Air Jacks:

• Excellent Recovery Tool:They’re perfect for loose terrains like sand, bogs, or mud due to their wide surface area.
• Compact Design:The flat profile allows them to fit under vehicles in tight situations, minimizing the need for excessive digging.
• Quick Operation:Speed is a notable advantage, allowing for fast vehicle lifting even on uneven terrain.
• Versatile Flotation:The ARB X Jack offers unequalled flotation in soft sand.

Is your truck buried to the bumpers, with no way to get a bottle jack or Hi-Lift underneath? All you need is 4 inches of scooped clearance for this jack to slide underneath. Stuck in rocks, with no secure base for a bumper jack? The X-Jack molds itself around virtually any substrate, and the hard rubber “teeth” on the bottom help prevent slippage.

Disadvantages of Air Jacks:

• Potential Damage:These jacks can be damaged if used on rough terrains or by sharp edges on the vehicle, although most models include a patch kit.
• Two-Person Operation:Safety precautions require two people to operate them effectively.
• Storage Concerns:They can be bulky, posing storage challenges.
• Compatibility Issues:Not suitable for vehicles with acute angle or twin exhausts without an air compressor option.
• Exhaust Fumes:Dealing with exhaust fumes can be unpleasant.
• Limited Lift Height:Typically, they offer a maximum lift of around 30 inches.

Let your engine do the lifting work with the X Jack.

Included is a thick square of guard material to protect the already-stout envelope, but it’s best to remember that this thing is still a heavy-duty balloon. Consequently, make sure to keep it away from bolt ends and hot exhaust pipes. Also remember that at full height, your vehicle is supported on air inside a flexible casing, so expect a bit of squidginess. But then, you wouldn’t get under a vehicle that’s supported only by any of these jacks, right?



What are the pros and cons of using a scissor jack for off-road purposes?

Surplus M998 Scissors Jack and Agile Off Road Chassis Adapter

Gotta love military surplus. The heavy-duty (3.5-ton) scissors jack configured to lift the front or rear A-arms of a high-mobility, multipurpose, wheeled vehicle—“Humvee” to most of us—is available by the score on eBay with a case, ratchet handle, and extension rods for around $75. Add Agile Off Road’s reversible, billet-aluminum adapter, and it’ll securely support your noncombat vehicle at either the axle or chassis.

A reversible ratcheting handle means you don’t have to crank in a complete circle in a confined space (a brilliant idea), and as long as your truck weighs less than an up-armored HMMWV, this jack will lift it easily to a height of 20.5 inches with the adapter in place.

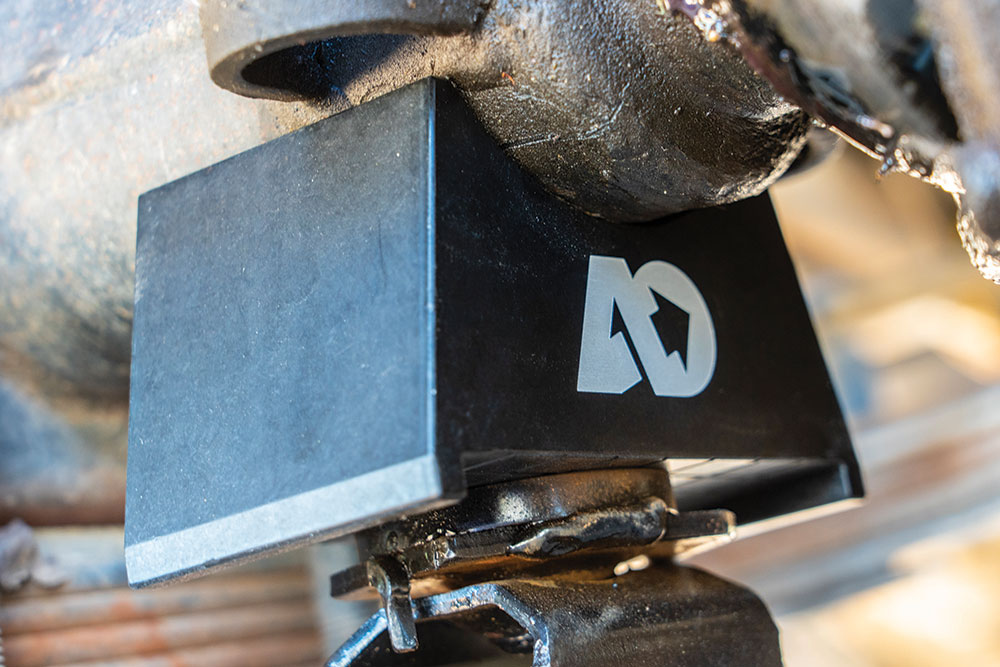

The reversible Agile Off Road Adapter provides secure support for either an axle or a chassis.

A generous 7×12-inch base plate ensures support in Middle Eastern-theater sand (or any other kind). The lifting post on the jack has a bit of wobble built in, so Agile Off Road recommends tack-welding it to increase stability. I used it as is and had zero problems.

For those considering using a scissor jack off-road, understanding both the benefits and limitations is crucial:

Pros

• Compact and Versatile: Despite its heavy-duty capability, the jack remains relatively compact, making it a convenient addition to any off-road kit.
• Wide Travel Range: Typically from as low as 4 inches up to 17+ inches, ensuring it can handle a variety of lifting needs.
• Reliable Screw-Drive Mechanism: Unlike hydraulic jacks, it won’t leak, providing peace of mind in rugged environments.
• Low Maintenance: The mechanical design means less upkeep is needed, a boon for those who travel far from repair facilities.
• Smooth Lift and Lower: Offers fine lift adjustments, crucial for safely handling uneven terrain.
• Lightweight and Fast with Power Tools: Fairly light, and when paired with a ½” adapter and battery-operated impact driver, it becomes a quick and efficient tool.
• Safety: Safer than using a farm jack, especially in precarious situations.

Cons

• Stability Issues at High Lift: Can be unstable when extended to its maximum height, which is important to consider on uneven ground.
• Requires Level Ground: To ensure safe lifting, the jack must be perfectly level, a potential challenge in off-road conditions.
• Slow Manual Operation: Without power tool assistance, it can be tedious to operate.
• Exposure to Dirt and Debris: The screw-drive mechanism is susceptible to clogging, which might hinder performance.
• Storage and Terrain Limitations: Larger models with greater lift ranges can be cumbersome to store, and they are not suitable for soft terrain such as sand, snow, or mud.

Balancing these pros and cons will help you decide if this adaptable tool fits your off-road needs, offering both the rugged reliability of military engineering and the practicality required by adventurous drivers.



What steps should be taken while using an off road jack to maintain safety?

Safety Steps for Using an Off-Road Jack

Using an off-road jack demands attention to safety details to avoid accidents and ensure a smooth operation. Here’s a comprehensive guide to maximizing safety:

1. Avoid Getting Under the Vehicle
   Never position yourself beneath a vehicle supported solely by an off-road jack. Always use tools, like a long handle or jack shaft, that allow you to operate the jack safely from outside the vehicle’s trajectory.
2. Proper Jack Positioning
   Ensure the jack is placed securely under a designated jack point on your vehicle. These points are specifically designed to handle the vehicle’s weight without slipping.
3. Stabilize on Soft Terrain

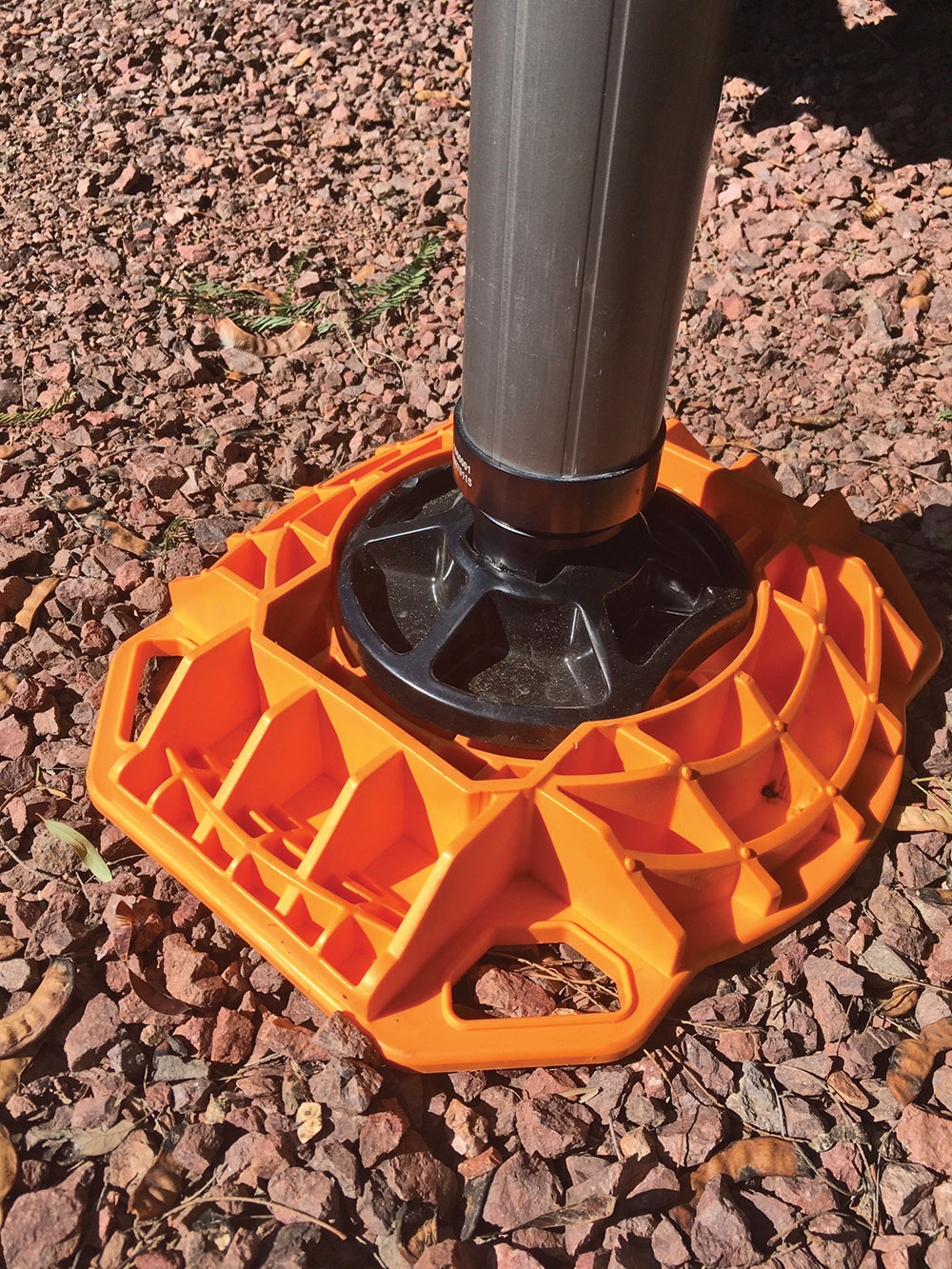

   On soft surfaces, place a stabilizer, such as a broad off-road jack base, beneath the jack. This provides a stable platform and helps prevent sinking.
4. Work from a Safe Position
   When employing a recovery or farm jack, stand to the side. This positioning keeps you clear in case the jack handle swings unexpectedly.
5. Monitor Load Shifts
   Be vigilant for any shifts in the vehicle’s weight or if the jack begins to tilt. Should this occur, stop immediately and adjust the jack.
6. Double-Check Before Lifting Fully
   Before completing your lift, recheck the jack’s positioning and stability to ensure everything is secure.
7. Handle Removal Post-Lift
   Once you’ve achieved the necessary height, remove the jack handle if possible. This prevents unintended lowering.
8. Lift Only When Necessary
   Raise the vehicle just high enough to perform your task. Excessive lifting increases risk.
9. Support with Secondary Tools
   After lifting, use wheel blocks and jack stands to stabilize the vehicle. It’s also wise to position a removed tire under the vehicle frame or axle as an added precaution. This acts as a backup should any equipment fail.

By following these steps, you can carry out your tasks confidently, knowing that safety is your top priority.



What factors should be considered when choosing an off road jack for a 4×4 vehicle?

Choosing the Right Off-Road Jack for Your 4×4 Vehicle

Selecting an off-road jack for your 4×4 requires careful consideration of several key factors to ensure you have a safe and effective solution for your adventures.

1. Weight Capacity

Start with the jack’s weight capacity. This indicates how much weight the jack can safely lift, commonly expressed in tons (e.g., 4 tons) or pounds. Knowing your vehicle’s Gross Vehicle Weight (GVW)—which you can determine at certified weigh stations—will help you choose a jack that can handle the load. Remember, the jack often doesn’t lift the vehicle’s total weight but supports part of it, especially when weight distribution is aided by tires or multiple jacks.

2. Lift Range

Consider the lift range, which is the height span the jack can cover while lifting at its maximum capacity. A wider lift range provides versatility, crucial for vehicles with lifted suspensions, especially in varying off-road conditions.

3. Dimensions and Weight

Space on a 4×4 is limited, so the jack’s size and weight matter. Ensure its dimensions align with your storage possibilities, whether inside the vehicle or mounted externally. Prioritize accessibility, so it’s ready when needed without hassle.

4. Terrain Compatibility

Assess the types of terrain the jack can handle. From sand to snow, mud to rocky paths, different jacks perform better on specific surfaces. Choose one that matches the off-road terrains your adventures will encounter.

5. Vehicle Specifications

Not all jacks are compatible with every vehicle. Stock or unmodified vehicles may lack suitable jack points for larger models, while those with higher ground clearance or aftermarket lifts might require jacks with taller ranges. Check your vehicle’s manual for factory jack points and ensure your chosen jack can effectively engage these spots.

6. Budget Considerations

Finally, your budget will naturally influence your choice. While it’s important to ensure quality and reliability—perhaps adhering to the “buy-once-cry-once” philosophy—you don’t need to overspend. Many well-priced options offer both safety and durability.

By evaluating these factors, you can select an off-road jack that meets your 4×4 needs without compromise, ensuring that you’re prepared for any challenge the road or terrain presents.



What should be done before using an off road jack to ensure safety?

Essential Safety Steps Before Using an Off-Road Jack

Before using an off-road jack, it’s crucial to ensure safety at every step. Here’s a comprehensive guide on what you should do:

1. Verify Capacity
   Make sure the jack is appropriate for your vehicle’s weight. You can typically find the capacity rating printed on the jack or in its manual.
2. Conduct a Thorough Inspection
   Check for any signs of damage or wear. If the jack appears compromised in any way, do not use it.
3. Check for Hydraulic Leaks
   For hydraulic jacks, inspect for leaks. Avoid using it if you notice any fluid leakage.
4. Proper Lubrication
   Apply oil or grease as recommended by the manufacturer to keep the jack functioning smoothly.
5. Handle with Care
   Prevent damage by handling the jack with care. Avoid dropping or throwing it, as this can damage the mechanical components.
6. Use Protective Gear
   Wear sturdy gloves designed for off-road recovery tasks to protect your hands.
7. Ensure Vehicle Stability
   Stabilize your vehicle on a flat surface. Avoid jacking on an incline to prevent accidents.
8. Secure the Vehicle
   Engage the emergency brake and use wheel chocks to secure the tires before starting.
9. Transmission Setting
   With the engine off, set the transmission in gear for manuals or in “Park” for automatics, and engage 4WD if available.
10. Check Surroundings
    Ensure no bystanders are near the vehicle and maintain a safe working distance.

By following these steps, you can enhance safety and efficiency while using an off-road jack.



How can one identify jack points on an overland off road vehicle?

How to Identify Jack Points on an Overland Off-Road Vehicle

Before attempting to lift your vehicle with an off-road jack, it’s crucial to pinpoint the correct jack points. This ensures safety and prevents damage. Here’s how you can effectively identify these points:

1. Consult the Vehicle Manual
   Start with your vehicle’s manual. It outlines the manufacturer’s recommended jack points which are designed to be strong enough to support the vehicle’s weight.
2. Front Wheel Areas
   Look for positions behind the front wheels along the frame or subframe. These spots are typically suited for lifting when working on the front tires or steering elements.
3. Rear Wheel Locations
   Similarly, check in front of the rear wheels for reliable jack points. Again, focus on the frame or subframe as the secure areas.
4. Suspension and Axle Points
   • For vehicles with independent front suspension (IFS), the front crossmember might serve as a centralized jack point.
   • For those with a solid front axle (SFA), consider using the front axle differential housing.
5. Rear Support
   Locate a central spot on the rear crossmember or rear axle. This is generally robust enough to hold the vehicle’s weight during lifting.
6. Aftermarket Add-Ons
   If your vehicle is equipped with aftermarket off-road accessories like bumpers or rock sliders, they might offer additional jacking spots. Refer to the specific manufacturer’s guidance for these components.

By following these guidelines, you ensure safe lifting practices, preserving both your vehicle and your safety.



What are the five main categories of off road jacks?

When exploring the world of off-road jacks, you’ll find five primary categories, each offering unique features suited for different needs and environments. Understanding these categories will help you choose the best tool for your off-road adventures:

1. Scissor Jacks

Scissor jacks are compact and easy to use, making them ideal for lighter vehicles. They rely on a mechanical screw mechanism to lift your vehicle and are typically affordable. However, they may not provide sufficient height or stability for heavy-duty off-road tasks.

2. Recovery Jacks (Farm Jacks)

Known for their versatility, recovery jacks, or farm jacks, are built to handle a wide range of off-road challenges. They provide impressive lift height, making them suitable for vehicles with large tires or significant ground clearance. On the downside, they can be bulky and require some practice to use safely.

3. Bottle Jacks

Bottle jacks feature a compact, hydraulic design and are renowned for their strength. They are perfect for lifting heavy vehicles effortlessly. Despite their power, they lack lateral stability, which may pose a challenge in uneven terrain typical of off-road situations.

4. Floor Jacks

Floor jacks offer a high level of stability and ease of use. These jacks are hydraulic and often equipped with wheels, allowing for smooth movement and precise positioning. Nonetheless, their size and weight can be a drawback when space and portability are priorities.

5. Air Jacks/Exhaust Jacks

Air or exhaust jacks use the vehicle’s exhaust to inflate a sturdy bag, lifting the vehicle off the ground. They are exceptionally useful in soft or sandy terrains where traditional jacks might struggle. While versatile, they can be slower to deploy and may require additional care during use.

Choosing the right off-road jack involves evaluating your vehicle’s specifications and typical terrain conditions. Each type has its pros and cons, but with the right knowledge, you can ensure you’re prepared for any off-road challenge.



Why is it important to have the right off road jack and related gear when overlanding?

Their article more thoroughly addresses the importance of having the right off-road jack and related gear for overlanding by directly emphasizing the necessity and versatility of such equipment. Here’s a breakdown of how it accomplishes this:

1. Essentials and Versatility:
   • Their article begins by stating that an off-road jack is “absolutely essential,” explicitly highlighting its importance for overlanding.
   • It suggests carrying a combination of jacks to handle various terrain conditions, emphasizing the versatility required for successful overlanding.
2. Comprehensive Overview:
   • The article promises to cover the “five main categories of off road 4×4 jacks,” offering a broad overview. This indicates a thorough exploration of options, which is crucial for understanding the importance of selecting the right gear.
3. Pros and Cons:
   • By mentioning the pros and cons of each jack type, Their article implies a balanced examination, helping readers appreciate the implications of different choices for their specific needs.
4. Tailored Recommendations:
   • The article concludes by stating it will help readers choose the best jacks for their adventures, underscoring the importance of matching gear to specific overlanding challenges.

In contrast, Your article focuses more on the limitations of factory-supplied jacks and the need for robust equipment without explicitly connecting these points to the broader context of overlanding. While it discusses technical considerations and potential uses of a robust jack, it lacks the structured explanation of why having the right gear is critical for the diverse scenarios encountered in overlanding.



Why is it important to carry a combination of off-road jacks?

Having a combination of off-road jacks equips you to handle a variety of terrain conditions. This strategy enhances your preparedness, ensuring you can tackle unexpected challenges with the right tool at hand.



How should one choose the best off-road jack for their specific overlanding needs?

To choose the best off-road jack, consider the specific demands of your journey, including the terrain and your vehicle’s load. Assessing these factors will guide you to select a jack that ensures safety and reliability throughout your adventure.



What are the pros and cons of each type of off-road jack?

Each type of off-road jack has its own set of advantages and disadvantages. Understanding these can help you weigh factors like ease of use, lifting capacity, and versatility to find the right fit for your vehicle and adventure needs.



What are the different types of off-road jacks available?

There are five main categories of off-road jacks, each designed to tackle different challenges you might face while overlanding. These categories ensure that you have the right tool for various terrains and situations.



What is an off road jack and why is it essential for overlanding with a 4WD vehicle?

Their article more directly addresses the question, “What is an off road jack and why is it essential for overlanding with a 4WD vehicle?” by providing a clear definition and context for its necessity. Here’s how:

1. Definition and Context: Their article begins by defining an off road jack as an “essential piece of overlanding gear,” immediately establishing its importance for a 4WD vehicle. It suggests that these jacks are crucial for navigating different terrain conditions, which is a common scenario in overlanding.
2. Solution-Oriented: It proposes a practical solution by recommending carrying a combination of off road jacks, implying that different types of jacks might be needed for various situations, thus highlighting their essential role in preparedness for overlanding adventures.

In contrast, Your article focuses more on the limitations of factory-supplied jacks and the need for stronger alternatives without explicitly stating why off road jacks are essential for overlanding. While it provides valuable information about the inadequacy of standard jacks and the necessary considerations when choosing a jack, it assumes a level of prior knowledge and skips directly to more advanced decision-making.

The thoroughness of Their article lies in its foundational explanation, which is crucial for readers who are new to the concept of off road jacks and their role in overlanding.



What is the practical benefit of having multiple off road jacks?

Having a selection of off road jacks allows you to be better equipped for different situations, providing flexibility and reliability when facing diverse terrain challenges during overlanding trips.



Why is an off road jack essential for overlanding?

It is essential because it ensures that you are prepared for varied terrain conditions, offering the capability to manage vehicle challenges encountered off the beaten path.



What is an off road jack?

An off road jack is a crucial tool designed for vehicles traveling on rough terrain, especially useful for lifting 4WD vehicles during overlanding adventures.



How should one properly use an off road jack, and what safety precautions should be taken?

Their article provides a comprehensive guide on the proper use and safety precautions for an off road jack. Here’s how it more thoroughly answers the question compared to Your article:

Detailed Instructions and Safety Guidelines

1. Step-by-Step Use:

• Their article breaks down the process into clear, actionable steps. It begins with identifying safe jack points on the vehicle and follows through with detailed instructions on what to do before and while using the jack.

2. Safety Measures:

• It emphasizes safety by outlining specific precautions, such as checking the jack’s capacity, inspecting for damage, ensuring the vehicle is stabilized, and maintaining awareness of bystanders.

3. Technical Details:

• The article provides technical details about different jack points based on vehicle types, such as IFS or SFA, and mentions additional lift points if aftermarket accessories are installed.

4. Precautionary Steps:

• Comprehensive precautions are listed, including ensuring the vehicle’s emergency brake is applied, using wheel chocks, and never getting under a vehicle supported only by a jack.

Comprehensive Coverage of Jack Use

1. Pre-Use Checks:

• Their article includes a checklist for pre-use inspections, such as verifying the jack’s capacity and checking for leaks in hydraulic jacks.

2. Operational Instructions:

• It gives specific instructions for how to position the jack and handle it, such as using a wide stabilizer on soft terrain and positioning oneself safely during use.

3. Post-Use Safety:

• The article advises on securing the lifted load with wheel blocks and jack stands and suggests additional backup safety measures, like placing removed wheels under the vehicle.

In Comparison to Your article

• Your articlefocuses on supplementary equipment like vehicle chocks and jack base plates but lacks detailed guidance on the actual use of the off road jack or comprehensive safety precautions.
• It provides a personal recommendation for specific products but doesn’t cover the broader aspects of jack usage or safety protocols.

Overall, Their article offers a thorough and systematic approach to using an off road jack safely, addressing both procedural and precautionary aspects, which makes it a more complete answer to the question.



What additional safety measures should be taken once the vehicle is lifted?

Support the lifted vehicle with wheel blocks and jack stands. Place a removed wheel under the vehicle frame or axle for added safety. Never rely solely on the jack to support the vehicle.



How should the jack be positioned and used during operation?

Position the jack under a secure jack point that can bear the load. On soft ground, use a stabilizer under the jack base. Avoid being directly in front of the handle, and cease lifting if the load shifts or the jack leans.



What are the necessary safety precautions before using an off road jack?

Stabilize the vehicle, apply the emergency brake, chock the tires, and make sure the transmission is in the correct gear. Also, ensure bystanders maintain a safe distance from the operation area.



What pre-use inspections and preparations are necessary before using an off road jack?

Before use, check the jack’s weight capacity, inspect it for any damage or leaks, and ensure it is properly lubricated. Avoid using a damaged jack and handle it carefully to prevent compromising its integrity.



Where are the safe jack points on an off-road vehicle?

Safe jack points can typically be found behind the front wheels on the frame or subframe for servicing, in front of the rear wheels, on the front crossmember or axle for certain suspension types, and centrally on the rear crossmember or axle. Aftermarket bumpers and rock sliders may also offer additional jack points.



What makes recovery jacks different from other types of off road jacks?

Their article provides a comprehensive overview of off-road recovery jacks by clearly distinguishing their unique features and functionalities compared to other off-road jacks. Here’s how it effectively answers the question:

1. Detailed Description: It begins by explaining the unique design and functionality of recovery jacks, noting their taller lifting range and specific jack points, which sets them apart from other jacks.
2. Pros and Cons: Their article includes a detailed pros and cons list. This breakdown helps the reader understand both the advantages, such as versatility and lifting capability, and the drawbacks, like bulkiness and maintenance needs, giving a holistic view of what makes recovery jacks unique.
3. Specific Features: By mentioning specific features like the ability to work on various terrains and the requirement for aftermarket bumpers, it highlights differences in compatibility and usage scenarios compared to standard jacks.
4. Use Cases: It specifies the scenarios in which recovery jacks excel, such as lifting from fixed jack points, which are not common in standard models, thereby providing practical insights into their application.

In contrast, Your article focuses on a specific use case scenario and emphasizes the need for a jack rated for heavy-duty tasks. While it highlights the importance of choosing the right jack for recovery tasks, it lacks the detailed comparison of features, advantages, and limitations provided in Their article. Thus, Their article offers a more thorough explanation of what differentiates recovery jacks from other off-road jacks.



What maintenance considerations are there for recovery jacks?**

Models like the Hi-lift require regular maintenance, including cleaning and greasing, particularly when mounted outside the vehicle, to ensure they operate smoothly.



What are the cons of using recovery jacks?**

Some drawbacks include their bulky and heavy nature, susceptibility to dirt and weather, maintenance needs, incompatibility with stock vehicles, the need for significant lifting height for tire changes, and potential instability at higher lifts.



What are the pros of using recovery jacks?**

Recovery jacks boast several advantages, including exceptional lifting height, ease of use, versatility, and functionality on various terrain surfaces, especially when paired with a broader base plate.



What are the compatibility requirements for using recovery jacks?**

To properly use recovery jacks, vehicles typically need aftermarket off-road bumpers or rock sliders that provide fixed jack points, as standard vehicle jack points are usually not suitable.



What is the lifting capability of recovery jacks?**

These jacks offer a significant lifting range, often extending from as low as 5 inches to over 50 inches, depending on the specific model.



What are the different types of names for recovery jacks?**

Recovery jacks are commonly referred to by various names, including perimeter jacks, beam jacks, farm jacks, and hi-lift jacks.



How is the capacity of an off road jack determined, and why is it important?

Their article provides a more comprehensive answer to the question “How is the capacity of an off-road jack determined, and why is it important?” by delving into the specifics of how to ascertain the appropriate jack for a vehicle and why this information is critical.

Explanation of Capacity Determination:

1. Tonnage Rating:Their article mentions that the capacity of an off-road jack is typically indicated by a tonnage rating, such as 4 tons, and sometimes in pounds. This informs the reader about the standard measurement units used in determining a jack’s capacity.
2. Gross Vehicle Weight (GVW):The article goes further by explaining the importance of knowing the vehicle’s GVW, which can be determined at a certified CAT scale. This step is crucial for selecting a jack with the correct capacity for the vehicle.
3. Practical Application:It highlights that the jack will not lift the entire weight of the vehicle, as some weight remains on the tires, and the weight distribution is shared if multiple jacks are used. This practical context helps readers understand real-world applications.

Importance of Capacity:

1. Safety and Suitability:By explaining how to determine the appropriate capacity, Their article underscores the importance of selecting a jack that can safely support the vehicle’s weight, thus ensuring safety.
2. Rational Basis for Selection:The article provides a logical basis for selecting an off-road jack, emphasizing the importance of matching the jack’s capacity with the vehicle’s weight requirements.

In contrast, Your article provides a general overview of the typical weight capacity of off-road jacks and their applications but lacks the detailed process of determining the appropriate capacity for specific vehicles and the reasoning behind its importance.



Why is it important to select a jack with the appropriate capacity?

Selecting a jack with the correct capacity is crucial for safety, ensuring that it can adequately support the vehicle’s weight without risk of failure during use.



Why might the jack not need to support the entire weight of the vehicle?

Typically, a jack won’t need to lift the entire vehicle because some weight remains supported by the tires. Additionally, if multiple jacks are used, the vehicle’s weight is distributed among them.



How do you determine the correct capacity of a jack for your vehicle?

To select the right jack capacity, determine your vehicle’s Gross Vehicle Weight (GVW) when fully loaded. This can be done at a certified CAT scale, giving you a reliable basis for choosing a jack that meets your needs.



How is the capacity of an off-road jack expressed?

The capacity of an off-road jack is usually indicated either as a tonnage rating, like 4 tons, or in pounds, providing a clear measure of the maximum weight the jack can safely lift.



What are air jacks and exhaust jacks, and what are their pros and cons for off road use?

Their article provides a direct and comprehensive overview of air jacks, specifically focusing on their function, pros, and cons in off-road scenarios. Here’s how it thoroughly answers the question:

1. Definition and Function: It begins by defining air jacks, also known as exhaust jacks, and explains their purpose in off-road vehicle recoveries. It describes how the jack works by positioning a multi-layer rubberized canvas bag under the vehicle’s frame and inflating it using exhaust gases or an air compressor.
2. Pros of Air Jacks: The article lists several advantages, such as their effectiveness in loose terrains (bogs, sand, mud) due to a wide surface area, their flat profile for tight situations, fast operation, and their capability to work well in uneven terrain.
3. Cons of Air Jacks: It also provides a detailed list of disadvantages, including vulnerability to damage/puncture, the need for two operators, bulkiness when stored, compatibility issues with certain vehicles, dealing with exhaust fumes, and limited lift height.

By clearly outlining both the positive and negative aspects of air jacks, Their article offers a balanced view, helping readers understand their utility and limitations in off-road environments.

In contrast, Your article focuses on a specific product, the ARB X-Jack, highlighting its features and benefits but not providing a broad overview of air jacks as a category or a comprehensive list of their pros and cons. This makes Their article more effective in thoroughly answering the question.



What are the general cons or limitations of air jacks?

Air jacks can be susceptible to damage from rough terrain or sharp vehicle edges, although many come with patch kits. They typically require two people for safe operation, are bulky when stored, and may not be compatible with vehicles having certain exhaust configurations. Users must also manage exposure to exhaust fumes, and the lift height is generally limited to around 30 inches.



What are the general pros of using air jacks in off-road situations?

Air jacks are particularly effective in loose terrains due to their broad surface area, which prevents sinking. They also have a flat design that fits under vehicles in tight spots, requiring minimal excavation. Additionally, they operate quickly and can be used on uneven surfaces.



What are air jacks and exhaust jacks?

Air jacks, also referred to as exhaust jacks, are tools designed for recovering vehicles stuck in soft terrain, like sand or mud. They function by placing a durable, rubberized bag under the vehicle’s frame and inflating it using either exhaust gases or an air compressor to lift the vehicle.

---
