WINCHING TECHNIQUES: HOW TO BE OFF-ROAD READY

How to properly use a winch and maintain it

Understanding winching techniques, knowing their capabilities and limitations and how to maintain them properly is critical. Newcomers and seasoned travelers, alike, can make off-road excursions safer with winch know-how.

The smell of Mother Nature’s freshness after a hard rain wafts across your nose as you’re surrounded by majestic pine trees and muddy trails. Miles into a desolate, hardly used area, what once was a hard-packed dirt track gets narrower—allowing little room for adjustment.

Suddenly, a 4×4 slides off the trail and into a perilous position. However, the winch mounted on this adventure rig hasn’t ever been used. It’s seen thousands of miles but wasn’t practiced with or learned about. Uh, oh.

You Bought a Winch and Installed It. Now, What?

Stretch the winch rope. Whether you own a synthetic- or wire-equipped winch, one of the first things you should do is stretch the winch’s rope. Instructions on how to do this can be found online. Stretching a winch line involves putting it under tension to get the rope snug on the drum and get the rope wound evenly. By doing this simple step, you’ll ensure the winch line won’t get crossed up atop itself and get crushed during the winching process.

Understanding how to use a winch, knowing its capabilities and limitations and how to maintain it properly are critical.

Winch maintenance schedule. Understanding a winch’s maintenance schedule is also important. For starters, maintaining a winch rope can lengthen its life span. Wire rope can develop burrs; it could also rust if it’s not properly cared for. Conversely, synthetic rope, while lighter and easier to handle than wire cable, can degrade from the inside out if it’s not regularly cleaned. If a winch rope is compromised, it’s time to replace it.

Keep Your Line Clean

Clean the winch line. If you’re “playing” in mud or driving through silt-filled trails with a synthetic rope-equipped winch, cleaning the line with warm water and mild dish soap can help keep the rope clean. (Pro tip: By pushing the rope together during the cleaning process, much as with a Chinese finger trap toy, soap will penetrate the inner area and help keep it in tip-top shape.) Remember to rinse the rope with clean water after cleaning.

Free-spool. If you don’t use your winch very often, free-spool the winch line out a few times a year and power it in under a slight load—essentially, you’ll be re-stretching the line. Similar to a car or truck, winches need usage to lubricate and recoat their gears, bearings and bushings to keep everything moving correctly.

Inspect the winch. Regularly inspecting a winch, along with associated power cables and connections, can help keep it running smoothly. You don’t want to be stuck on the trail with “all show and no go” if a winch becomes disabled without you knowing it.

Winching Techniques: Regular Usage Equals Prepared Overlanders

Practice using a winch. Learn how to use it comfortably before needing to use it. Know a winch’s capabilities and restrictions. That’ll help you remain calm during vehicle recoveries.

Recovering an adventure rig can take a while. However, slowing down and taking time to ensure everything’s in order before recovering the vehicle can make a tense situation bearable. Stash a winch remote in a known safe spot. Better yet, carry two remotes for peace of mind. Keep sturdy winching gloves within easy reach; they’ll help prevent rope burn and protect your hands from line burrs or other things the rope might pick up during the winching process.

Additionally, use a winch damper—whether it’s a dedicated winch line damper, a heavy bag or even floor mats. Putting weight on a line will help it fall to the ground in the case of a winch line failure.

Understanding where people can and can’t stand during a vehicle recovery is also crucial. If someone is near a line and it happens to snap, they could be injured.

Safety First

Note: Have bystanders stand father away from a winch line than the length of rope that’s pulled from it. If 100 feet of line are pulled out, have people stand at least 100 feet away from it. This can help prevent injury in case a line breaks and snaps back toward any direction.

Additionally, don’t step over the line if it’s under tension. By doing this, adventure seekers save themselves and others from harm should the line break unexpectedly. The winch operator should also be in a safe place. This means the operator should be inside the vehicle or, if outside, the operator should stand behind an vehicle’s open door for added protection. Don’t stand in front of, or behind, the vehicle.

Regularly practicing with a winch ensures safety, sanity and smart actions when the going gets stuck.

Recover Me, Please

It’s important to understand where a vehicle’s recovery points are located. Using a tie-down loop instead of a dedicated recovery point can be detrimental if it’s used during a recovery operation. Knowing the differences between a proper recovery connection that can handle the load of a winch pull or a tie-down point that’s used only during transport can mean the difference between a successful retrieval or a damaged vehicle … or worse.

In addition, if an adventure rig dons a front or rear aftermarket bumper, make sure it came from a reputable manufacturer that tests its products. Inspect it regularly to make sure all recovery points are secure, aren’t rusted and can handle severe-duty pulls.

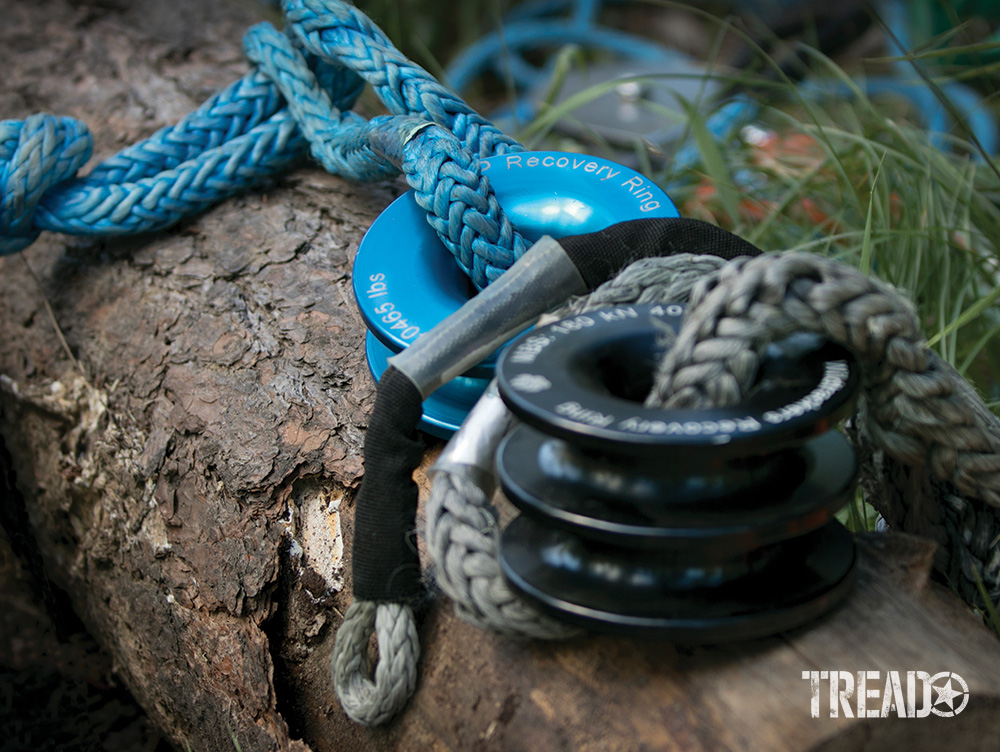

Awesome Winching Accessories

Make sure you have the right accessories in your winching kit; this is essential for proper winching techniques. It’s like adding your favorite jelly to an already awesome peanut butter sandwich. It’s recommended to carry at least two shackles (it doesn’t matter if they’re made from a metal or a synthetic construction), a snatch block or recovery ring, a static tree trunk protector and a kinetic recovery strap. Shackles are used for connecting the winch rope to a recovery point. A static rope is used around a tree or another anchor point. And a kinetic rope is used to yank a vehicle out of its dirt-filled ditch dive.

Recovering an adventure rig can take awhile. However, slowing down and taking time to ensure everything’s in order before recovering the vehicle can make a tense situation bearable.

Additionally, if a vehicle is equipped with a hitch receiver, a hitch receiver shackle bracket turns a standard hitch into a legitimate recovery point.

As mentioned earlier, adding solid gloves and a winch line damper helps round out a basic winching kit. Bringing these items along when venturing off the beaten path can help ensure safe recoveries after unexpected stuck situations.

Winching Techniques: Recovery Readiness

Adding key recovery items to your gear is recommended. This is besides the basic winching kit. A solid shovel and adventure-ready recovery boards are two ways to safely supplement a recovery effort if you’re not extremely stuck. Recovery boards are often used as the first attempt of recovery This is in lieu of winching. Here are the basic steps to use recovery boards:

1. Plan an escape route—either forward or backward.
2. Dig out—in front of or behind the tires.
3. Lay the recovery boards even to the ground, directly in front of, or behind, the tires.
4. Kick them into place under the tires until the nubs connect with the tires.

Slowly accelerate to freedom. If your vehicle remains stuck, repeat all steps.

Note: If you’re using traction devices or recovery boards, don’t accelerate quickly and spin the tires, because you might melt the nubs.

Knowledge Is King

There’s a vast world of winching techniques and recovery know-how. The most important thing is to learn about it before you go out on an adventure. Know the capabilities and limitations of your winch and equipment. Purchase from reputable manufacturers. Ask questions … and practice, practice, and practice.

Arming yourself with proper winching techniques and recovery know-how will ensure safer, satisfying and smoother travels off the beaten path.

(Editor’s Note: A version of this story appeared in Tread July/August 2021.)

---



FREQUENTLY ASKED QUESTIONS

Why is a straight-line pull important for maintaining winch power?

Understanding the Importance of a Straight-Line Pull for Winch Efficiency

When using a winch, maintaining a straight-line pull is critical for several reasons:

1. Optimal Power Utilization: A straight-line pull ensures that the winch operates at its maximum efficiency. Angled pulls can create additional friction and strain on the winch, reducing its overall pulling power.
2. Preventing Equipment Damage: Introducing angles or twists in the winching line can alter the physics of how the winch functions. This can lead to increased wear and tear on both the winch and the line, potentially causing premature failure.
3. Enhanced Control and Safety: A straight pull offers better control over the load, reducing the risk of unexpected shifts or movements that could be hazardous. It ensures a predictable path of travel for the object being pulled, which is crucial for safe winching operations.

Key Points to Remember

• Align Equipment Properly: Always position the vehicle and winch in a way that the line remains as straight as possible.
• Use Guides or Pulleys: When a straight-line pull isn’t feasible, incorporate snatch blocks or other pulley systems to redirect the line while maintaining efficiency.
• Regular Inspection: Frequently inspect winch lines and equipment for signs of stress or damage, especially after angled pulls.

By focusing on these practices, you can maintain the integrity and strength of your winching setup, ensuring that you get the maximum power while preserving the longevity of your equipment.



Why is it important to rig a straight-line pull to the face of the winch?

Why Rigging a Straight-Line Pull to the Face of the Winch is Crucial

Rigging a straight-line pull to the face of the winch is essential for several reasons. Firstly, it ensures the winch operates within its designed parameters. When you deviate from a straight-line pull, you alter the physics and mechanics at play. This can drastically reduce the efficiency and effectiveness of the winch.

Imagine the winch as a finely tuned machine. When you pull at an angle, you’re exerting uneven pressure on the winch components. This can lead to increased wear and tear, and in extreme cases, mechanical failure.

Here are the key points to consider:

• Optimal Functioning: A straight-line pull allows the winch to deliver its maximum rated capacity. Angled pulls can diminish this capacity, making the winch less effective.
• Safety: Uneven stress can cause the winch line to snap or the winch to fail, posing serious safety risks to anyone nearby.
• Durability: Consistently applying uneven pressure can significantly shorten the lifespan of your winch. Keeping the pull straight helps in maintaining its longevity.

By adhering to a straight-line pull, you’re not only ensuring the safety and efficiency of your winching operation but also preserving the integrity of the winch itself.



What safety measures should be taken when winching in a live rig?

When winching in a live rig, taking appropriate safety measures is critical to prevent accidents and injuries. Here are the steps to ensure a safe operation:

Ensure Everyone is in Safe Locations

Before you start winching, make sure that everyone is positioned in designated safe spots.

• Safe Spots Include:
  • Inside a vehicle
  • Behind a large tree or rock
  • Far away from the rig itself

Visualize the potential path of debris in case of a catastrophic failure and keep people well clear of those areas. Never allow anyone to be within the shape formed by the rig, especially when it includes multiple turns or redirections.

Initial Winching Process

1. Take Up Slack Gradually: Begin by slowly taking up the slack in the rope with small, controlled bumps of the winch.
   • Hand Signal: Use a tapping motion with your fingers and thumb to signal each tap on the controller.
2. Inspect the Rig:
   • Check for Issues: Once the rig is taut, inspect it closely for any problems such as twisted gear, improperly set hooks, or ropes that are touching the ground, trees, or vehicles.
   • Enlist Help: If the rig spreads out over a significant distance, get assistance from others to effectively check all areas.
3. Address Any Problems: If you find any issues, release some tension by winching out. Correct the problems before proceeding.

Setting Up Parachute Rigs

Parachute rigs are essential for added safety, particularly to increase wind resistance and provide some mass to the setup.

1. Drape Over Rope:
   • Place an object like a blanket, carpet square, floor mat, tree saver, or piece of clothing over the rope at the midpoint between each turn or fulcrum.
2. Prevent Sliding:
   • In steep, uneven terrain where the parachute rig might slide, secure it with a tree saver. Use a tight half hitch knot on the rope to keep the parachute rig in place and prevent frequent resets.

By adhering to these safety measures, you can significantly reduce the risk of accidents and ensure a safer winching operation. Always remain vigilant and cautious while managing a live rig.



What is the process for setting up a single-line pull in winching?

Setting Up a Single-Line Pull in Winching

Setting up a single-line pull for winching involves several crucial steps to ensure safety and efficiency. Below is a streamlined process to follow:

1. Assess the Situation

Before starting, evaluate the terrain and potential anchor points such as trees, rocks, or ground anchors. Make sure these options are within the load ratings of your winching gear.

2. Safety Preparations

• Gear Readiness: Have your winch kit accessible and ready to use.
• Preventive Measures: If the terrain is tricky, set up a preventive strap or kinetic rope to stabilize your vehicle temporarily.
• Plan Sharing: If you have a spotter, communicate your recovery plan clearly before starting.

3. Identify Why You’re Stuck

• Inspection: Put on your gloves and use a shovel to determine what exactly is causing your vehicle to be stuck. This will help you choose the safest and most effective recovery method.

4. Equipment Setup

• Recovery Method: Prioritize using a kinetic rope first, then the winch, and lastly a Hi-Lift jack if necessary.
• Anchor Point: Confirm the stability and strength of your chosen anchor point.
• Gear Check: Ensure all required equipment is available and in good condition.

5. Pull Out the Winch Rope

• Free-Spooling: Place the winch in free-spool mode to pull the rope off the spool. If the temperature is low and lubrication is making free-spooling difficult, consider re-greasing with lower-temperature rated oil or using graphite powders.
• Safety Measures: Treat the rope as if it’s always live. Don’t let it get between your legs, and handle it by the outermost part of the hook or shackle to prevent injury.

6. Anchor Your Rope

• Tree Saver Strap: Use a 10- to 20-foot tree-saver strap around your anchor point. Wrapping the strap around itself can help it grip the tree and prevent sliding.
• Rock Anchors: If using a rock, employ two straps wrapped like a package to ensure they don’t slip off. Chains can be used as a last resort but handle them very carefully due to their tendency to fail without warning.

7. D-Shackle Attachment

• Secure Connection: Attach the ends of your tree-saver strap to a D-shackle. Fully tighten the clevis pin and then loosen it half a turn to prevent it from getting stuck under tension.
• Positioning: Rotate the D-shackle so the pin faces the tree saver, ensuring the arch side is toward the winch hook. This setup helps maintain optimal geometry and reduces the chance of damaging the pin threads.

8. Final Checks

• Anchor Stability: Ensure that your anchor is securely set and won’t damage the environment excessively.
• Handler Safety: Make sure everyone is clear of the “harm radius” and that only essential personnel are involved in the recovery operation.

By following these steps, you can set up a single-line pull effectively and safely, ensuring a smooth and controlled recovery of your vehicle.



What could cause a pulley to fail during a winch operation and how can this be prevented?

Preventing Pulley Failure During Winch Operations

Pulley failure during winch operations can stem from several factors, but a primary cause is inadequate preventive maintenance and inspection. Here’s how to address and prevent this issue effectively.

Common Causes of Pulley Failure

1. Worn Out Components: Over time, the moving parts of a pulley, such as the center sleeve and C-rings, can wear out. This wear and tear can lead to weakened structural integrity, making the pulley prone to failure under stress.
2. Improper Assembly: If the pulley isn’t assembled correctly, components may be more likely to dislodge during operation. This includes ensuring that all parts are securely in place and functioning as intended.
3. Excessive Load: Pulleys are designed to handle specific load limits. Exceeding these limits can cause components to break or come loose, resulting in catastrophic failure.
4. Environmental Factors: Dirt, grime, and moisture can corrode and degrade pulley components, which may contribute to unexpected failures.

Preventive Measures

1. Regular Inspection:
   • Visual Checks: Before each use, inspect the pulley for any visible signs of wear, such as cracks, rust, or deformation.
   • Component Inspection: Ensure that the center sleeve and C-rings (or cotter pins) are in place and in good condition.
2. Proper Maintenance:
   • Lubrication: Regularly lubricate moving parts to reduce friction and wear.
   • Cleaning: Keep the pulley clean and free of debris that could impair its function.
3. Load Management:
   • Adhere to Load Ratings: Always use a pulley that is rated for the load you’re applying. Check the manufacturer’s specifications to ensure compatibility.
   • Balanced Loads: Ensure that the load is evenly distributed to avoid placing undue stress on one part of the pulley.
4. Training and Procedures:
   • Training: Ensure all operators are trained in the correct usage and assembly of pulleys.
   • Emergency Protocols: Have procedures in place for stopping operations immediately if a failure is suspected.

By following these practices, you can significantly reduce the risk of pulley failure during winch operations. Regular maintenance and proper usage are the keys to ensuring safety and efficiency in any winching task.

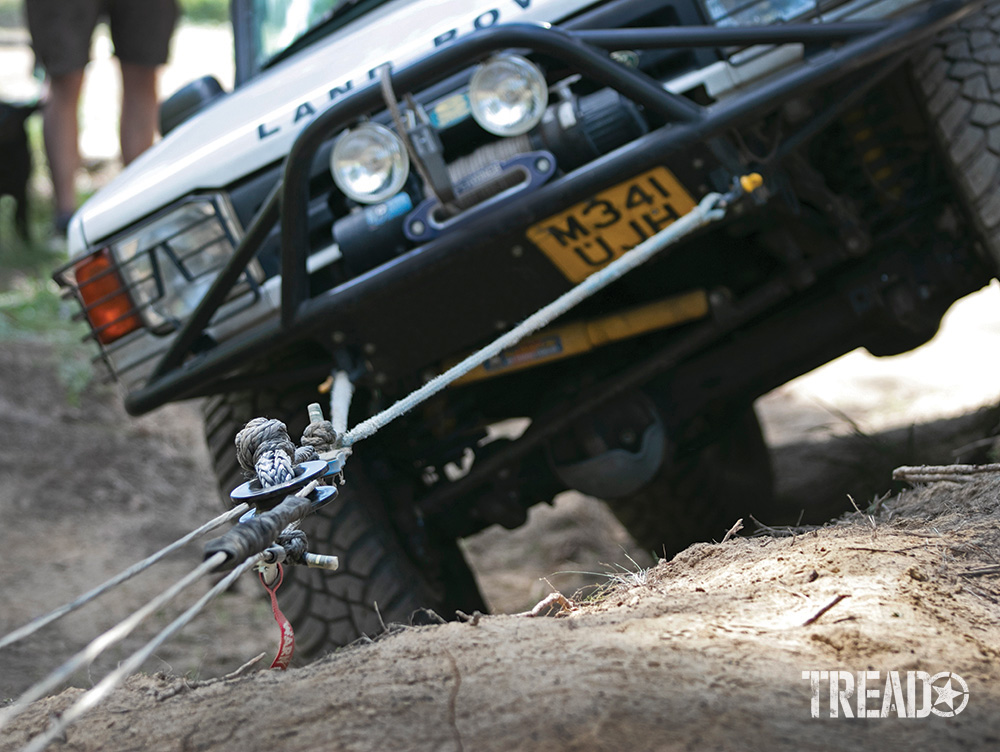

What is the procedure for setting up a double-line pull?

Setting Up a Double-Line Pull: A Step-by-Step Guide

If you’re looking to maximize the efficiency of your winch, a double-line pull is a great technique. This setup offers a straighter, less strained pull and allows for better power distribution. Here’s how you can set it up:

Step 1: Gather Your Equipment

Before you begin, ensure you have the following:

• A sturdy winch
• A pulley (snatch block)
• A recovery rope
• Heavy-duty gloves for safety

Step 2: Position the Vehicle

Position your vehicle so that you have ample space for the recovery operation. Make sure the vehicle is stable and on even ground if possible.

Step 3: Attach the Winch Rope

Begin by unwinding the winch rope and attaching the hook to a secure anchor point on the vehicle in need of recovery. This could be a tow hook or a dedicated recovery point.

Step 4: Set Up the Pulley

Attach the pulley to a solid anchor point, such as a tree or another vehicle. Run the winch rope through the pulley, ensuring it seats properly in the groove to avoid slippage.

Step 5: Route the Rope Back

After the rope passes through the pulley, route it back to your vehicle and attach it securely to a strong recovery point.

Step 6: Start the Pull

With everything in place, slowly engage the winch. The double-line setup will effectively halve the load on the winch, offering you a 2:1 mechanical advantage. Monitor the pull closely to ensure everything stays aligned and secure.

Step 7: Safety Check

Always wear gloves and stand clear of the winch rope as it is under tension. Ensure that no one is standing in the direct line of the rope, as snapping ropes can be dangerous.

Benefits of a Double-Line Pull

• Reduced Strain: Less stress on the winch and rope
• Improved Power: Allows more rope to be used effectively
• Versatility: Can be used in a variety of recovery scenarios

By following these steps, you’ll be able to perform a double-line pull efficiently and safely.



Why should winching gear be twice as strong as the estimated load?

Ensuring Safety and Security

Winching operations can be inherently risky, often requiring the handling of heavy loads in challenging conditions. By using gear that is twice as strong as the estimated load, you considerably reduce the chances of equipment failure. This increased strength offers a crucial safety buffer that can prevent accidents, protecting both the operator and the assets being recovered.

Accounting for Unexpected Loads

Loads can sometimes be unpredictable. Factors such as the terrain, weather conditions, and the angle of pull can all influence the actual load on the winch. If your equipment is only marginally rated for the task, you run the risk of overloading it due to unforeseen variables. Doubling your gear’s strength ensures that any unexpected spikes in load won’t lead to catastrophic failure.

Longevity of Equipment

Using winching gear rated at twice the estimated load isn’t just about immediate safety; it also extends the lifespan of the equipment. Gear that operates well below its maximum capacity experiences less wear and tear, leading to fewer breakdowns and reduced maintenance costs over time. Brands like ARB and Warn are known for their durability, but even their high-quality equipment will last longer if used within a safer margin.

Enhanced Performance

Stronger gear can deliver better performance. With additional strength, the winch operates more efficiently and with less strain. This increase in efficiency can save time and effort, allowing for smoother and quicker recoveries.

Compliance with Industry Standards

Many industry guidelines recommend using equipment that has a safety factor built-in. Whether it’s for industrial purposes, off-road adventures, or search and rescue missions, adhering to a standard of doubling your gear’s capability ensures that you are in line with best practices.

In Summary:

• Safety Buffer: Prevents accidents.
• Unpredictable Loads: Handles unexpected spikes.
• Equipment Longevity: Reduces wear and tear.
• Enhanced Performance: Ensures efficient operations.
• Standards Compliance: Meets industry guidelines.

By investing in winching gear that is twice as strong as the estimated load, you are prioritizing safety, performance, and durability, ensuring successful and secure winching operations every time.



What should you do if the winch shows signs of straining or the rope starts to hiss and ping?

What to Do if Your Winch Strains or the Rope Hisses and Pings

When you notice your winch straining or the rope making unusual sounds, it’s crucial to act immediately to prevent potential damage or accidents. Here’s a step-by-step guide to handle such situations:

1. Listen to Your Winch:
   • If the winch begins to slow down or strain, your engine revolutions might be too low, or you might be overloading it.
   • Overloading can occur if a hidden obstacle, like a rock or hole, is affecting the operation.
2. Monitor All Wheels:
   • Ensure you’re keeping an eye on all four wheels since missed obstacles can cause undue stress on the winch.
3. Identify Rope Issues:
   • If you hear the rope starting to hiss, ping, or vibrate unusually, it’s a warning sign that the rope might be near its breaking point.
4. Immediate Action Steps:
   • Stop the Winch: As soon as you hear or see signs of distress, stop the winching process immediately.
   • Slacken the Line: Release some tension to reduce the stress on both the winch and the rope.
   • Inspect and Correct: Check for the source of the problem. If the rope is stuck or near a sharp edge, correct its position.
   • Protection: If the rope is rubbing against a surface and cannot be repositioned, place something smooth, like a log, mat, or pelican case, under the line to prevent further abrasion.
5. Environmental Care:
   • Ensure that any items used to protect the rope do not harm the environment. Always select eco-friendly materials or items that won’t leave a lasting impact.

By following these steps, you can safely address any issues with your winch and rope, ensuring both your safety and the longevity of your equipment.



How can you stabilize a vehicle before beginning a winch recovery?

How to Stabilize a Vehicle Before Starting a Winch Recovery

Stabilizing your vehicle before a winch recovery is crucial for safety. Here are steps to ensure your vehicle is secure:

1. Use a Spotter: Have a reliable spotter assist you. They can help you assess the situation and manage stabilization efforts.
2. Apply the Brake: As the driver, ensure the vehicle’s brake is firmly applied to prevent any movement during the winching process.
3. Utilize Wheel Chocks: Place wheel chocks or similar stabilizing tools, such as recovery tracks or rocks, under the wheels to further secure the vehicle.
4. Stay Inside the Vehicle: If it seems challenging to stabilize the vehicle externally, stay inside with the brake applied while your spotter hooks up the winch.

By following these steps, you can secure your vehicle effectively and proceed with winch recovery safely.



How can the use of pulleys increase mechanical advantage in winching?

Understanding Mechanical Advantage in Winching with Pulleys

When engaging in winching operations, understanding how to maximize mechanical advantage using pulleys can make a significant difference. Here’s a straightforward guide to help you leverage pulleys effectively.

Stationary Pulleys: No Advantage

First, it’s important to know that pulleys don’t provide any mechanical advantage if they’re stationary. For instance, if you run a rope from a weight through a pulley on an overhead beam and pull, you’re essentially lifting the weight directly. The same applies if you run a winch rope through a pulley on a fixed anchor; the strain on the winch remains the same while the tree or anchor bears increased load due to added friction and rope redirection.

Moving Pulleys: Doubling the Advantage

However, things change when the pulley itself moves with the load. Here’s how you can increase your mechanical advantage:

1. Single Pulley Setup:
   • Run the rope from the winch through a pulley attached to the load.
   • Direct it back to the vehicle or another fixed point.

In this configuration:

• Both segments of the rope share the load.
• The force required from the winch is halved.
• You nearly achieve a 2:1 mechanical advantage, effectively doubling the winch’s pulling power.

Parallel Ropes: Maximizing Efficiency

For the optimal mechanical advantage:

• Ensure the two rope segments remain as parallel as possible.
• This alignment minimizes swaying and maximizes efficiency, distributing the load evenly across both sections of the rope.

Compound Pulleys: Increasing the Ratio

You can further enhance mechanical advantage by incorporating additional pulleys:

1. Two-Pulley System:
   • Attach a pulley to the load.
   • Run the rope from the winch through this pulley, then through another pulley mounted on the winching vehicle, and back to the load.

This setup:

• Provides a 3:1 mechanical advantage.
• Requires one-third of the force otherwise needed to move the load.

Practical Example: Vehicle Recovery

Consider a scenario where a vehicle is stuck:

• Attach a pulley to the bumper of the stuck vehicle.
• Run a winch rope from a recovery vehicle through this pulley and back to the bumper of the winching vehicle.
• Adding another pulley to the winching vehicle enhances the mechanical advantage further.

In essence:

• Count the number of rope segments between the stuck vehicle and the winching vehicle.
• Each segment reduces the necessary input force, increasing your mechanical advantage.

Conclusion

To effectively increase your mechanical advantage when using pulleys in winching operations, ensure the pulley moves with the load. For the best results, maintain parallel rope segments and consider using multiple pulleys. By understanding and applying these principles, you can maximize efficiency and reduce the strain on both your equipment and anchor points.



How does the number of rope wraps on the spool affect the pulling power of the winch?

The pulling power of a winch is intrinsically linked to the number of rope wraps around its spool. Here’s a detailed breakdown of how this works:

Initial Pulling Power

When a winch is first engaged with a single layer of rope on the spool, it operates at its maximum rated pulling capacity. For instance, a winch rated at 9,000 pounds can exert this full force only when there’s a single layer of rope.

Impact of Additional Layers

As additional layers of rope wind onto the spool, the diameter of the spool effectively increases. This increased diameter reduces the winch’s pulling power. On average, each new layer of rope can reduce the winch’s pulling power by approximately 11 to 13 percent.

• Three to Four Layers: For a typical winch holding 100 feet of rope, this means three to four layers of rope could be present on the spool. As a result, by the time the spool is fully wound, the winch’s pulling capacity can decrease significantly.

Practical Example

At the end of an 80-foot pull, where multiple layers are wound onto the spool, the pulling power could be reduced by as much as half. This is a considerable reduction and underscores the importance of rope management.

Maximizing Pulling Power

To achieve the full pulling power, it’s essential to pull out all the rope, exposing the spool surface. However, it’s equally vital to leave at least 10 wraps on the spool. These wraps ensure the load is transferred effectively, preventing stress on the attachment fastener (like bolts or screws).

Key Takeaways

• Start with Max Power: Pulling power is at its peak with the first layer of rope.
• Layer Impact: Each new layer of rope decreases pulling power by 11-13%.
• Full Extension: For maximum efficiency, extend the rope but always leave 10 wraps on the spool.

Understanding how rope layers affect winch pulling power is crucial for effective and safe winching operations. Always manage your rope properly to maintain optimal performance.



What steps should be followed when beginning to winch in rope?

Steps to Follow When Beginning to Winch in Rope

1. Ensure Safety First

• Relocate Personnel: Move everyone to safe zones, such as inside a vehicle, behind a large tree or rock, or far away from the rig. Visualize potential paths of gear failure to avoid dangerous areas.
• Assess Rig Shape: Avoid standing inside any geometric shapes (triangle, quadrilateral, etc.) formed by the rig’s cables. These shapes are prone to implosion if a failure occurs.

2. Initial Winch Setup

• Tension Adjustment: Carefully take up slack by using small bumps of the winch. The hand signal for this is tapping fingers together, resembling mimicking someone talking.
• Inspect the Rig: With tension applied, inspect for any issues such as twisted equipment, improper hook settings, or ropes contacting unsuitable surfaces. Have extra hands to assist if necessary.

3. Addressing Issues

• Release Tension: If any problems are found, winch out to relieve tension and resolve the issues.
• Setting Up Parachute Rig: Place a parachute rig (like blankets, carpet squares, or floor mats) on the rope midway between each set of turns or fulcrums. This aids in safety by offering wind resistance. Secure it with a tree saver tied tightly to prevent sliding, especially on slopes.

4. Coordination Between Driver and Spotter

• Spotter’s Role: The spotter will signal the driver to winch in and steer, all while monitoring the spool and rig. Their duties also include managing rope layers to prevent bunching and guiding the vehicle’s motion to ensure even spooling.
• Driver’s Role: The driver must keep the load balanced using light throttle without wheel spin. This minimizes strain on the winch system. Optimal vehicle control is crucial; adjust throttle to maintain charge in the electrical system if necessary but avoid creating slack.

By following these steps, you’ll ensure a smooth and safe winching process, reducing the risk of equipment failure and improving overall efficiency.



What are the safety considerations for using a re-directed pull with two vehicles?

Safety Considerations for Using a Re-Directed Pull With Two Vehicles

When using a re-directed pull to recover a stuck vehicle, safety is paramount. Here are the key considerations to ensure a safe and successful recovery:

1. Equipment Ratings

• Understand Load Limits: Know the maximum load limits of your winch, tree savers, D-shackles, and pulleys. For example, if the stuck vehicle generates 5,000 pounds of resistance, the re-directing pulley will bear roughly double that load, around 10,000 pounds.
• Double Check Ratings: Ensure all gear used in the operation can handle these forces, ideally rated for double the expected load to provide a safety margin.

2. Proper Setup

• Anchor Positions: Run the winch rope from the recovery vehicle past the stuck vehicle to an anchor point, then back to the stuck vehicle’s front bumper.
• Secure the Stuck Vehicle: Use chocks or a tree saver on the rear bumper of the stuck vehicle to prevent it from moving uphill unintentionally.
• Prevent Rope Damage: If needed, add a sub-rig to keep the winch rope clear of obstacles and reduce friction.

3. Team Coordination

• Assign Roles: Ideally, have two drivers and one spotter. The spotter should maintain a clear line of sight to both vehicles, the winch spool, and the entire rig, if possible.
• Communication: The spotter must use standardized hand signals to communicate winching operations to the second driver and steering/movement signals to the first driver. Consistent and clear communication is crucial.

4. General Winching Practices

• Safety Gear: Always wear gloves when handling winch rope and use a winch damper to reduce the recoil risk if the rope snaps.
• Monitor Tension: Regularly check the tension in the winch rope and all connection points to ensure they’re secure and functioning correctly.
• Clear Area: Ensure all bystanders are at a safe distance, ideally within the line of sight but outside any potential snap zone of the winch rope.

Conclusion

By meticulously checking equipment ratings, ensuring proper setup, coordinating roles and communication, and adhering to general winching safety practices, you can safely conduct a re-directed pull using two vehicles. Safety should always be the priority in any recovery operation.



How does slope affect the resistance load on a winch?

When using a winch, the slope of the terrain plays a critical role in determining the resistance load. Simply put, steeper slopes increase the workload on the winch, requiring it to handle a greater portion of the vehicle’s weight.

Here’s a detailed breakdown:

Understanding Resistance on Slopes

1. Zero-Degree Slope:
   • At no incline, the winch deals primarily with the vehicle’s inherent resistance and the ground conditions (substrate). The slope itself contributes minimally to the overall resistance.
2. Moderate Slopes (35 Degrees):
   • On a moderate incline, such as a 35-degree slope, the resistance load rises significantly. For a vehicle weighing 5,000 pounds, the winch faces approximately 3,000 pounds of resistance purely from the slope’s angle.
3. Steeper Slopes (45 Degrees and Beyond):
   • As the slope steepens to 45 degrees or a 100-percent grade (indicative of an equal rise and run), the load becomes even heavier. In this scenario, expect the winch to pull about 75 percent of the vehicle’s weight.
   • By the time you reach a 60-degree slope, the winch must bear the full weight of the vehicle, making it equivalent to lifting the entire vehicle up vertically.

Key Takeaways

• Greater Angle = Higher Resistance: The steeper the slope, the more resistance your winch will encounter. Always factor this into your calculations to ensure your winch can handle the load.
• Incremental Increases: Resistance doesn’t increase linearly. Pay close attention to changes in slope, as small differences can cause substantial increases in the load on your winch.

Being mindful of these points helps ensure that your winch setup is both effective and safe, especially when navigating challenging terrains.



What is the role of pulleys in winch operations?

Understanding the Role of Pulleys in Winch Operations

Pulleys play a crucial role in winch operations, particularly in off-road recovery scenarios. Their primary function is to alter the direction of the pull and, more importantly, to increase the pulling power of the winch through mechanical advantage. But this advantage isn’t automatic and depends heavily on the setup.

No Mechanical Advantage Without Movement

A pulley does not offer any mechanical advantage unless it moves with the load being shifted. For example, if you connect a winch rope to a pulley attached to a tree and then anchor the rope back to your vehicle, the pulley does not help. Instead, it doubles the strain on the tree and the pulley because both the winch and the fixed anchor exert force. This setup doesn’t increase your winch’s pulling power but rather increases stress on the anchorage point.

Gaining Mechanical Advantage

To actually gain a mechanical advantage, the pulley must be configured in such a way that both ends of the rope move and shorten. If you run the winch rope to a pulley and then back to your vehicle, you’ve essentially doubled your pulling power. This setup turns the fixed tree point into a “moving pulley,” giving you a 2:1 mechanical advantage. This means your winch can pull with twice the power, though the speed of the pull will slow down by half.

The Impact of Angles

The angle between the rope segments also affects the load on the pulley and the tree. As the angle increases, the force exerted on the tree also increases. At 90 degrees, for instance, the load is roughly 40% more than the pulling force of the winch. At 180 degrees, it’s double.

Multi-Pulley Systems

Using multiple pulleys can further increase your mechanical advantage. For instance, attaching another pulley to the winching vehicle and running the rope back to the stuck vehicle can give you a 3:1 advantage. This setup means each rope segment that gets shorter adds to the mechanical advantage. Essentially, counting these shortening lines helps you determine the total mechanical advantage.

Practical Applications

A redirected pull can still be beneficial. More rope off the spool means greater pulling power, and the rope layers more slowly, allowing for longer pulls. This setup is efficient for distance and extended pulling operations, maximizing the rope’s effectiveness and the winch’s power.

Summary

In summary, pulleys in winch operations serve to redirect force and multiply the pulling power through mechanical advantage. The optimal use of pulleys can significantly enhance the efficiency and capability of winch systems, making them indispensable tools for off-road recoveries and other heavy-duty applications.



How should you address winch rope bunching or layering if it occurs?

Addressing Winch Rope Bunching or Layering

1. Identify the Issue
   When you notice the winch rope starting to bunch or layer, it’s essential to address it immediately to prevent damage.
2. Redress the Winch
   First, stabilize your vehicle and eliminate all slack. Make sure the area is clear, then signal to others that you’re about to work on the winch.
3. Disengage and Release
   Disengage the winch to switch it to free spool mode. Carefully pull out the problematic section of the rope, letting it fall to the ground, away from your feet.
4. Handle the Rope Properly
   Do not attempt to coil, grab, or walk off the rope to keep it neat. Simply let it lay on the ground in a pile. When reeled back in reverse order, the rope won’t tangle or knot.
5. Re-engage and Maintain Tension
   Once the rope is laid out and the mess is clear, re-engage the winch to reel it back in. Stand back at least twice the stopping distance for safety. Maintain continuous tension on the rope to prevent it from springing off due to metal memory, especially if you’re using metal rope.
6. Feed the Rope Neatly
   With a firm grip, feed the rope hand-over-hand into the winch, ensuring it doesn’t slip through your gloved hands. Zigzag the rope to enable an even and uniform wrap around the spool.
7. Final Considerations
   If you’re winching just for the sake of replacing the rope, neatness is less critical since the line will be unwound next time. However, a tidy redress minimizes exposure to elements like moisture or UV light, which can cause rust in metal ropes and degradation in synthetic ropes.



What are the three basic premises of winching?

Understanding the core principles of winching ensures both safety and effectiveness. Here are the three fundamental premises:

1. Ensure a Straight-Line Pull

Always set up your winch so the pull aligns directly with the face of the winch. Failing to do this alters the physics involved and compromises how the winch functions.

2. Maximize Rope Exposure

When using a winch, unravel most of your rope, leaving about 10 wraps on the spool. The reason for this is that a winch, such as a 9,000-pound rated one, achieves its maximum pulling capacity with just one layer of rope on the spool. As more layers wrap around the spool, the effective pulling power diminishes, sometimes by as much as 50% over an 80-foot pull. Always keep those essential 10 wraps to handle the rope’s load, ensuring the spool’s attachment points aren’t strained unnecessarily.

3. Proper Use of Pulleys

To gain mechanical advantage from pulleys, the pulley must either move with the load or be set up for a double line pull. Misunderstandings about pulley physics can lead to inefficiency; therefore, ensure your pulley setup provides the intended mechanical benefit.

By keeping these three premises in mind, you can make your winching operations both safer and more effective.



What is a re-directed pull and when should it be used?

Understanding Re-Directed Pulls: Definition and Applications

A re-directed pull, while not providing any mechanical advantage, is a technique often used in recovery situations to achieve specific positioning of lines. It involves running a winch line through a pulley or snatch block, altering the direction of the pull to maneuver around obstacles or achieve a desired pull angle. This method can increase the strain on anchors and pulleys but is invaluable in certain scenarios.

When to Use a Re-Directed Pull

1. Line Extension: When you need more length from your winch line, a re-directed pull can help save spool space and extend your reach to a distant anchor point.
2. Straight Pull Setup: If the straight-line approach from the winch is obstructed or impractical, re-directing the pull allows for setting up a direct, effective recovery line.

Practical Example

Imagine two vehicles on a slope. The leading vehicle (Vehicle One) is immobilized, and the trailing vehicle (Vehicle Two) will act as the recovery anchor. Here’s how to set it up:

1. Winch Line Routing: Run the winch line from Vehicle Two past Vehicle One and anchor it securely before directing it back to Vehicle One’s bumper.
2. Stabilization: Vehicle One should be stabilized using chocks on its tires or by anchoring its rear bumper to prevent unwanted movement.
3. Team Coordination: Ideally, this setup involves two drivers and a spotter. The spotter’s task is to monitor both drivers and communicate using hand signals, ensuring safe and synchronized movements.

Key Considerations

• Forces Involved: If Vehicle One’s resistance is 5,000 pounds, the winch on Vehicle Two must handle 5,000 pounds plus additional resistance from the pulley. Importantly, the pulley itself will endure roughly 10,000 pounds of strain. Ensure all equipment, such as tree savers, D-shackles, and pulleys, are rated to handle this increased load.

Safety First

Always take standard safety measures into account: check for proper equipment ratings, ensure clear communication between all participants, and never underestimate the forces at play in a re-directed pull scenario. Proper preparation and mindful execution can make all the difference.



What is the “Winch before you winch” methodology?

Understanding the “Winch Before You Winch” Methodology

The “Winch Before You Winch” methodology is a structured approach to off-road driving designed to help you anticipate and overcome obstacles safely and effectively. This mindset encourages proactive thinking and preparedness, aiming to reduce the likelihood that you’ll need to winch in the first place. Here’s a breakdown of the five steps involved:

1. Assess Your Readiness

Before even hitting the trail, ask yourself: Should you be there? Evaluate the conditions—are the area, weather, and time of day suitable for your adventure? Ensure you have the appropriate equipment, communication devices, and a first aid kit. Your skill level or the expertise within your group (like first-aid training or 4WD driver training) should match the difficulty of the trail or road. This initial assessment is vital for a safe journey.

2. Confirm Your Intent

Do you truly need to navigate through the obstacle ahead? It’s crucial to know what lies beyond the immediate challenge. Good local knowledge or a quick reconnaissance on foot can reveal crucial details about the next section of your route. This avoids potentially hazardous situations where backtracking isn’t an option.

3. Plan Your Approach

Formulate a detailed plan for tackling the obstacle. Walk the area to understand its intricacies and consider the capabilities of your vehicle, your skill level, and your equipment. Visualize the worst-case scenario. This mental exercise helps you prepare a preliminary recovery plan for tricky spots. If the risks outweigh the benefits, reconsider your path.

4. Stick to Your Plan

Execute your plan without letting fear or peer pressure lead you astray. Fear can cloud your judgment and cause hasty, dangerous decisions. The only valid reason to deviate from your plan is if the worst-case scenario starts to unfold. Stay calm, as you’ve already planned for this possibility.

5. Take Responsibility for Mishaps

Should things go awry, handle the situation responsibly. This involves environmental stewardship; make amends for any damage caused, no matter how minor. For instance, if you moved rocks to get over a bump, replace them to prevent compounding the issue for future travelers. Always leave the trail as you found it, or better.

Key Takeaways

• Think ahead: Consider the consequences of your actions before finding yourself in a sticky situation.
• Plan meticulously: Use your knowledge, skills, and available equipment to develop a clear strategy for overcoming obstacles.
• Stay prepared: Always have a recovery plan and be ready to implement it if necessary.
• Responsible driving: Ensure your actions on the trail do not negatively impact the environment or other drivers.

By adopting the “Winch Before You Winch” mindset, you foster a safer and more enjoyable off-road adventure, minimizing risks and maximizing preparedness.



How should you proceed once the vehicle is unstuck but still on difficult terrain?

Once your vehicle is freed but still navigating challenging terrain, follow these guidelines to ensure a safe and efficient escape:

Step-by-Step Instructions:

1. Avoid Grabbing the Recovery Rope
   • Safety First: Do not allow anyone to grab the recovery rope.
   • Driver’s Role: The driver should carefully steer over the rope to prevent it from getting entangled in the drivetrain, guided by a spotter if available.
2. Use a Spotter
   • Direct Assistance: Have a spotter direct you to ensure the rope moves safely under the vehicle.
   • No Spotter Available? If you’re alone and can’t see the rope, halt the vehicle immediately. Stabilize it, get out, and properly stow the recovery rope before proceeding.
3. Move Beyond the Hazardous Zone
   • Stability Check: Once the rope is clear and stowed, drive cautiously but steadily until you are well clear of the difficult area.
   • Safety Margin: Ensure you move a significant distance away from the risky terrain before considering any other actions.
4. Avoid Premature Disassembly
   • Stay Focused: Resist the temptation to disassemble your recovery gear too soon.
   • Avoid Additional Risks: Taking the rig apart too early can lead to getting stuck again or encountering a more hazardous situation.

Critical Tips:

• Spotter Communication: Maintain clear communication with your spotter to ensure precise navigation over the recovery rope.
• Throttle Control: Use gentle, controlled acceleration to avoid sudden movements that might destabilize the vehicle.
• Terrain Awareness: Stay mindful of the terrain and plan your escape route to minimize the risk of getting stuck again.

Conclusion

By following these steps, you can safely navigate your vehicle out of difficult terrain, minimizing the risk of further complications. Always prioritize safety and clear communication to ensure a smooth and secure recovery.



What steps should be taken if a winch’s free-spool function is difficult to use due to cold temperatures?

Dealing with Winch Free-Spool Issues in Cold Temperatures

If you find yourself struggling to use your winch’s free-spool function in cold weather, follow these steps:

1. Inspect Lubrication Compatibility:
   • Cold temperatures can cause the lubrication inside winches to become too thick, hampering free-spooling.
   • Consider re-greasing the winch with oil specifically rated for lower temperatures.
2. Use Alternative Lubricants:
   • Graphite powders can be an effective substitute for traditional lubricants in extremely cold conditions, similar to practices in Iceland.
3. Running the Winch:
   • Engage the winch in free-spool mode and run it briefly to generate heat in the lubrication, aiding in smoother operation.
4. Powering Out:
   • If free-spooling remains impossible, use the winch’s power to pull the rope out.
   • Remember that most winches, except worm-drive models, don’t handle prolonged power-outs well—especially in high temperatures, so be cautious.
5. Post-Operation Safety:
   • Once you’ve finished using the winch, place the control in a secure location where it can’t be accidentally activated.

Note: Always check your winch’s manual or contact the manufacturer for specific recommendations. Be aware that using non-standard lubricants might void your warranty.

Stay safe and maintain your equipment regularly to ensure optimal performance in all weather conditions.



How can you address kinks and burrs in metal winch lines?

How to Address Kinks and Burrs in Metal Winch Lines

Kinks and burrs in metal winch lines can pose significant hazards if not properly managed. Here are some steps to effectively address these issues:

Handling Kinks in Metal Lines

1. Stretching Out Kinks: When you notice a kink in a metal line, you can attempt to stretch it out. However, be aware that this can lead to a “tin can” effect, where the metal becomes more prone to kinking again at the same spot.
2. Avoid Repeated Kinking: Continuous kinking and straightening will weaken the metal, increasing the risk of line failure. It’s essential to minimize these cycles as much as possible to maintain the integrity of the line.

Managing Burrs on Metal Lines

1. Identifying Burrs: Burrs often result from partial breaks or cuts in the rope’s strands. These sharp protrusions can pose serious safety risks, including catching on gloves and pulling your hand into the winch.
2. Using Proper Gloves: Always wear gloves with loose wrists. This precaution allows you to quickly remove the glove if it gets caught in the winch, preventing injury.
3. Feeding the Rope Safely: Instead of letting the rope slide through your hands, use the hand-over-hand method to feed it in and out. This technique provides more control and time to react if the rope catches.

Evaluating Burr Severity

1. Assessing Rope Condition: Even a single burr indicates a weak section and ideally calls for rope replacement. However, if there are only one or two broken strands, you may not need to replace the entire rope immediately.
2. Smoothing Down Strands: If the replacement is not immediately necessary, smooth down the broken strands to prevent injury. Freshly galvanized rope burrs can cause burns, so handle them with care.

Final Recommendations

• Routine Inspection: Regularly check your winch lines for kinks and burrs to ensure they are in good condition.
• Prompt Maintenance: Address kinks and burrs as soon as they are detected to avoid exacerbating the problem.
• Safety First: Always prioritize safety by using appropriate protective equipment and handling techniques.

By following these guidelines, you can effectively manage kinks and burrs in metal winch lines, ensuring a safer and more reliable operation.



Why is it important to use closable winch rope hooks?

The Importance of Using Closable Winch Rope Hooks

Enhanced Safety

Using closable winch rope hooks significantly enhances safety during recovery operations. Open hooks can easily break or come loose, especially when slack is introduced into the system. This increases the risk of sudden failures and accidents. Closable hooks, on the other hand, create a more secure and reliable connection by keeping all parts tightly fastened.

Improved Load Management

Closable hooks are designed to handle loads more effectively from various angles. This is crucial as uneven or unexpected loads can compromise the integrity of an open hook, leading to potential disasters. A secure, closed system ensures that the load remains stable, reducing the risk of mishaps.

Durability and Longevity

Open hooks, especially those with swing gates, often suffer from rust and wear over time, particularly in regions with harsh weather conditions like New England. Closable hooks, including thimbles and D-shackles, provide better resistance to environmental factors, ensuring a longer lifespan and consistent performance.

Minimizing Slack Issues

Slack in the recovery system can cause open hooks to shift into undesirable positions, increasing the likelihood of failure once the load re-establishes itself. Closable hooks mitigate this risk by maintaining their position even when slack forms, thereby enhancing the overall stability and safety of the system.

Comprehensive Strength

While spring-loaded clips on open hooks offer some level of security, they do not add to the overall strength of the hook. Closable hooks are built to withstand the full load, providing a more robust and reliable solution. This extra strength is vital for handling heavy or unpredictable loads during recovery missions.

Summary

In summary, using closable winch rope hooks is vital for ensuring safety, stability, and durability in recovery operations. They offer superior strength, better load management, and reduce risks associated with slack and environmental wear, making them an indispensable component of any effective rigging system.



What should you do if you mess up during a winching operation?

When you’re involved in a winching operation and something goes wrong, it’s crucial to take responsibility and address the issue promptly. Here are the steps you should follow:

1. Take Responsibility: Acknowledge your mistake. Being accountable is the first step to fixing the problem and ensuring it doesn’t worsen.
2. Assess the Damage: Quickly and calmly evaluate what went wrong and the extent of any potential damage. Did you displace a rock, damage vegetation, or harm the trail?
3. Correct the Issue: If you moved a rock or affected the terrain, restore it to its original state. For example, if you dislodged the only rock that helped your vehicle gain traction, return it to its place.
4. Consider Environmental Impact: Understand that even minor disruptions can be amplified by subsequent vehicles. Always aim to leave the environment as undisturbed as possible.
5. Learn from the Experience: Reflect on what went wrong and how you can avoid similar mistakes in the future. This might include practicing better winching techniques or using more appropriate equipment.

By following these steps, you’ll not only rectify your mistake but also contribute to responsible outdoorsmanship.



How do general vehicle resistance and terrain resistance affect winch recovery?

General Vehicle Resistance

When considering winch recovery, it’s important to understand the factors that contribute to general vehicle resistance. This encompasses elements such as tire pressure, tire construction, and friction within the drivetrain.

• Tire Resistance: Lower tire pressure, often used for off-road traction, increases the surface area contact with the ground, consequently heightening resistance.
• Drivetrain Friction: Components like bearings, seals, and differentials introduce friction, adding to the overall resistance that a winch must overcome.

On an ideal, perfectly flat and hard surface, a vehicle would require minimal force to move. However, real-world conditions involve substantial friction through tires and drivetrain mechanisms, demanding more effort from the winch.

Terrain Resistance

The terrain beneath the vehicle plays a pivotal role in winch recovery. Here’s how different substrates influence the resistance:

1. Firm, Flat Ground: On solid ground with consistent tire pressure and no incline, resistance is at its lowest. For a vehicle weighing 5,000 pounds, typically only about seven percent of the total weight (around 350 pounds) needs to be overcome.
2. Challenging Terrains: Deep mud, snow, or sand greatly increases resistance. In such conditions, up to 50 percent or more of the vehicle’s weight could need to be moved. For the same 5,000-pound vehicle, this translates to needing to pull approximately 2,500 pounds.

Key Takeaways for Winch Recovery

• Assessing Terrain: Always evaluate the ground conditions. Firm ground is favorable, requiring less force. Muddy or snowy terrains necessitate significantly more pulling power.
• Monitoring Tire Pressure: Adjust tire pressure according to terrain, but keep in mind that lower pressure increases resistance.
• Friction Management: Maintain drivetrain components to minimize additional friction that could impede recovery efforts.

In summary, both vehicle resistance and terrain play critical roles in the efficiency and effectiveness of winch recovery, demanding strategic assessment and preparation for varying conditions.



What are the key hand signals used for communicating during winching operations?

Key Hand Signals for Communicating During Winching Operations

Effective hand signals are crucial for safe and efficient winching operations. Below are the essential signals to master:

Basic Driving Signals

• Come Forward: Hand raised to head height, motioning forward.
• Back Up: Hand raised, motioning backward.
• Turn Right/Left: Arm extended to the right or left side.
• Right Wheel Up a Rock: Raise right hand at head height.
• Left Wheel Down a Rock: Lower left hand from head height.
• Stop: Palm facing outward, raised to head height.
• Precise Movements: Use fingers to indicate specific small distances for forward movement or when front wheels are about to drop.
• Slow or Easy Does It: Hand raised with a slow, sweeping motion.

Winching Signals

For clarity and coordination, the right hand manages the winch while the left controls driving actions.

• Winch In: Circular motion with the right hand.
• Winch Out: Opposite circular motion with the right hand.
• Small Bump of Winch In/Out: Short, quick motions in the respective direction.
• Stop Winching: Closed fist held up.
• Hands In: Indicates the need to manually adjust or clear the winch spool. Driver should hang the control out of the window to prevent accidental engagement.

Combined Signals

• Stop Winching and Stop Driving: Both arms crossed with fists clenched. This signal means all actions must halt immediately, addressing potential hazards or confusion.

Pro Tips for Effective Communication

1. Go Slow: Precision and safety are paramount. Do not rush the process.
2. Clear Visibility: Always ensure signals are visible to the driver, especially considering potential windshield glare.
3. Overemphasize Motions: When training or dealing with new drivers, exaggerate hand signals to ensure clarity.
4. Immediate Clarification: If there’s any confusion, signal to the spotter to come closer for verbal communication.

Using these hand signals effectively will help maintain communication clarity and enhance the safety of winching operations. Always practice these gestures and develop a mutual understanding with your team for seamless execution.



What considerations should be taken when using rocks as anchor points for winching?

Key Considerations for Using Rocks as Anchor Points for Winching

When winching, using rocks as anchor points requires careful consideration to ensure safety and effectiveness.

1. Securing the Strap

First, ensure that the strap can loop securely around the rock. Wrapping the strap around the rock like a present, with the straps crossing at the back, can provide a better hold. Using two straps can help them reinforce each other, minimizing the chance of slipping.

2. Preventing Damage

If the rock’s surface seems likely to cause chafing or cutting, you might want to use a chain instead of a strap. However, be cautious—chains can be hazardous. While they are sturdier, they offer little warning before breaking. Chains don’t stretch or provide audible signals that they’re about to fail, unlike other materials such as synthetic ropes or metal cables that produce sounds or vibrations before breaking.

3. Choosing the Right Material

• Straps: Straps can hiss or ping when they are nearing their breaking point, offering some warning.
• Metal Cables: These often sound like a bad radio station, filled with pings and pops as they approach failure.
• Synthetic Ropes: These will heat up, vibrate, and hum before breaking, giving you a chance to react.

4. Using Chain Wisely

If you opt to use a chain, do so with caution and only as a last resort. Chains can “explode” without prior warning and have a high mass, which can be dangerous. Always prioritize repositioning an anchor vehicle or using a redirected winch pull before resorting to a chain.

5. Flexibility and Safety

Because chains do not flex, they can dislodge all at once, unlike softer materials that may slide or roll, offering a glimpse of impending failure. Thus, while chains can be useful on sharp rocks, use them sparingly and always consider other methods first for the sake of safety.

By following these guidelines, you can effectively use rocks as anchor points while minimizing the risk involved in winching operations.



What basic vocabulary is essential to understanding winch operations?

Essential Vocabulary for Understanding Winch Operations

To grasp the fundamentals of winch operations, it’s crucial to familiarize yourself with some key terms. Here’s an overview of the essential vocabulary:

Basic Components

• Rope: Also known as line or cable, this can be synthetic or metal (wire) and is vital for winch functionality.
• Spool (Drum): The central tube to which the rope is affixed. The rope wraps around this drum during operation.
• Wrap: A single turn of rope around the spool.
• Layer: A complete set of wraps around the spool or on top of a previous set.

Operational Modes

• Free Spool: In this state, the winch brake is released, allowing manual pulling of the rope.
• Engaged: The free spool function is disabled, and the motor is active, enabling rope retraction or extension.

Rigging Terms

• Main Rig: This refers to the winch system, which includes the winch and the hook at the rope’s end, along with its anchor points.
• Sub-Rig: Auxiliary attachments like pulley blocks or shackles that modify the primary rigging setup to change direction or perform specific tasks.
• Parachute Rig: Devices intended to slow down a broken line, utilizing weight and air resistance to reduce its energy and travel distance.

Hardware

• Pulley Block (Snatch Block/Swivel Pulley): A pulley that can be attached anywhere along the rope to alter direction or apply mechanical advantage.
• D-shackle: Metal U-shaped fasteners used to connect straps or ropes without knots.
• Roller Fairlead: This setup includes four rollers to guide the rope smoothly onto or off the winch.
• Hawse Fairlead: A flattened, oval-shaped guide without rollers, designed to lead the rope in and out efficiently.

Safety and Maintenance

• Hands In: A hand signal indicating an intention to touch the winch rope, signaling the winch operator to hold the control without activating it.
• Burr: A sharp, broken strand on metal rope, making it act like barbed wire.
• Advantage: Techniques that increase the overall pulling power of the rig, not to be confused with reducing localized stress on the rope.

Storage and Organization

• Dressed: A properly stowed rope on the spool when the winch isn’t in use, implying it’s wound neatly. To re-dress is to organize the rope effectively, either post-use or during operation.

Understanding these terms will enable you to navigate and operate winches more confidently and safely.



What are the challenges and considerations for off-line winch pulls?

Challenges and Considerations for Off-Line Winch Pulls

Limited Anchor Points

When you’re out in the wild and your options for anchor points are scarce, off-line winch pulls can become a necessity. Imagine having no trees around and only one rock available as an anchor. If that rock is slightly off to the side, you might have to use it regardless.

Over-Building the Rig

Given the less-than-ideal conditions, it’s crucial to over-build your rig. This means adding extra reinforcement to handle the additional strain. Use heavy-duty shackles, stronger tow ropes, and double-check all connections. Essentially, you need to compensate for the non-optimal anchor point by making everything else more robust.

Manufacturer Warnings

Be mindful that off-line winch pulls can push your equipment beyond its intended limits. Manufacturers might not officially endorse such uses, meaning they won’t be responsible for any damage or failure. You’re effectively accepting all risks associated with this operation.

Safety Precautions

Taking extra safety measures is vital. This includes using winch dampers, employing a ground anchor if possible, and always having a spotter to monitor the operation. Communication between team members is key to ensuring everyone’s safety.

Mental Readiness

Finally, evaluate the situation thoroughly. Think through every step and potential issue before engaging the winch. Even though you might be signing an unwritten mental waiver accepting all risks, thorough preparation can help mitigate some of the inherent dangers.

By keeping these challenges and considerations in mind, you’ll be better prepared to handle off-line winch pulls safely and effectively.



What steps should be taken to assess if you should be in a specific area for winching?

Steps to Assess If You Should Be in a Specific Area for Winching

1. Evaluate the Environment
   Assess the suitability of the area by considering the terrain, weather, and time of day. Ask yourself:

• Is the ground stable enough for winching operations?
• Are weather conditions favorable?
• Is there adequate daylight to safely execute the task?

2. Ensure Proper Equipment
   Before heading out, double-check that you have all the necessary gear:

• Winch kit: Including a reliable winch, durable rope or cable, and necessary hooks.
• Recovery gear: Such as recovery boards, shackles, and tree saver straps.
• Communication devices: Radios or satellite phones for remote coordination.
• First aid kit: For any potential injuries during the operation.

3. Assess Skill Level
   Evaluate the skill levels of everyone involved:

• Does your group have sufficient first-aid training in case of accidents?
• Is everyone knowledgeable in 4WD driving and winching techniques?
• Are there any certified professionals among your team?

4. Pre-Run Checklist
   Before you leave your camp or staging area:

• Conduct a final equipment check.
• Brief the team on the plan and emergency procedures.
• Ensure all communication devices are fully charged and operational.

By following these steps, you’ll be better prepared to determine if a specific area is appropriate for winching, enhancing both safety and efficiency during your recovery operations.



How can sub-rigs be used effectively during a winch recovery?

How to Utilize Sub-Rigs Effectively During a Winch Recovery

Understanding the Challenge

Imagine you’re facing a rocky hill with a 95-foot winch line to pull your vehicle to the top. Along this path, you must navigate around obstacles like holes and larger rocks, which forces a zig-zag route. Steering while winching is not only challenging but can also be dangerous if not managed correctly. Setting up multiple winching sections seems cumbersome, but there’s a much simpler solution: employing sub-rigs.

What is a Sub-Rig?

A sub-rig involves using a pulley system anchored partway through your winch line’s path. This setup helps redirect the winch line to maneuver around obstacles without having to relocate the main anchor point repeatedly.

Steps to Implement Sub-Rigs Effectively

1. Identify Obstacles: Examine your route and pinpoint where rocks, holes, or other obstructions might pose a challenge.
2. Locate Anchor Points: Find suitable spots partway along your path where you can securely anchor a pulley.
3. Set Up Your Main Rig: Begin by anchoring your main winch line from your vehicle to a primary anchor point 95 feet away.
4. Attach the Sub-Rig: Use a pulley system with a strong, reliable anchor to redirect the winch line around the obstacle.
5. Navigate the Obstacle: Winch your vehicle towards the obstacle, using the pulley to guide the line around it.
6. Reconfigure as Needed: Once clear, slacken the winch line, remove the sub-rig, and continue towards your main anchor or set up another sub-rig for the next obstacle.

Tips for Success

• Minimize Stress: Remember that each sub-rig introduces additional stress on its anchor point. Ensure all anchors are robust and secure.
• Safety First: Regularly inspect all components of your winching system for wear and tear, especially after dealing with obstacles.

Key Takeaways

Sub-rigs offer a powerful way to manage complex winching scenarios by allowing you to redirect the pull force around difficult terrain, enhancing control and safety. By carefully planning and setting up these systems, you can make your winch recovery operations more efficient and secure.



What is a preventer and when should you use it during winching?

A preventer is a critical safety tool used during vehicle winching operations. It can be a strap, kinetic rope, or another temporary anchor that helps stabilize your vehicle. The primary purpose of a preventer is to stop your vehicle from sliding sideways or encountering other issues once you’ve halted forward movement but before any backward motion begins.

When to Use a Preventer

1. Post-Failure Setup: Once you have realized that forward motion has ceased, and if the vehicle is somewhat stable, you should immediately set up a preventer. This is crucial to maintain control and avoid unwanted shifts in vehicle positioning.
2. Pre-Winching Preparation: Before beginning any winching, especially on uneven or risky terrain, it’s smart to set up your preventer first. This pre-emptive step ensures you have an edge in maintaining stability right from the start.
3. Solo Situations: If you find yourself operating alone (though it is advisable to avoid such scenarios), setting up a preventer can be a nerve-wracking but necessary task. Being proactive about using a preventer in these instances can significantly contribute to your safety and offer peace of mind.

In summary, a preventer acts as a safeguard against potential vehicle instability during winching. Using it at the right moments can make a substantial difference in ensuring the safety and success of your winching operation.



Why is it important to know what is coming up before attempting to get through an obstacle?

Why It’s Crucial to Know What’s Ahead Before Tackling an Obstacle

Avoid Unnecessary Setbacks

Understanding the terrain or obstacle ahead can save you from the frustration of having to backtrack significant distances. Imagine discovering halfway through a difficult path that you’re trapped and cannot progress further. This could lead to wasted time and energy.

Safety First

Navigating unknown or challenging areas without prior knowledge can be risky. Accurate information about what lies ahead allows you to prepare adequately, ensuring a safer journey for everyone involved.

Efficient Planning

When you know what to expect, you can plan more effectively. This may involve prepping equipment, adjusting your route, or even deciding that the obstacle isn’t worth the effort. Proper planning can help you avoid getting stuck or running into unforeseen difficulties.

Resource Management

Understanding the conditions ahead helps in better managing resources like fuel, food, and water. If you know that a difficult stretch is coming up, you can conserve your supplies and ensure you’re adequately provisioned before committing to the challenge.

Informed Decisions

Having a clear idea of the upcoming challenges allows for better decision-making. Whether it’s consulting local experts, studying maps, or doing a reconnaissance trip on foot, being informed helps you weigh the pros and cons accurately and decide whether to proceed or find an alternative route.

Pro Tips for Assessing Obstacles

• Local Knowledge: Seek insights from locals or fellow travelers who have recently navigated the same route.
• Reconnaissance: A short hike or drive to scout the area can provide vital information and help you decide if it’s worth attempting.
• Technology: Utilize GPS, topographic maps, and online forums to gather details about the area.

By investing a bit of time in understanding what’s ahead, you can ensure a smoother, safer, and more efficient journey.



What is the winching mantra to keep in mind during operations?

When operating a winch, it’s crucial to follow a comprehensive set of guidelines to ensure safety and efficiency. Here’s a detailed “winching mantra” for your operational routine:

1. Preparation and Mindset

• Stay Calm and Plan: Taking a moment to relax and strategize can prevent hasty decisions.
• Identify the Problem: Understand why you’re stuck before grabbing gear, avoiding assumptions.

2. Safety Measures

• Wear Gloves: Protect your hands from potential injuries.
• Avoid Dangerous Positions: Never place a rope between your legs or allow it to slide through your hands.
• Stabilize the Vehicle: Ensure your vehicle is stabilized before commencing winching activities.

3. Gear Handling

• Gather Gear First: Collect all necessary equipment in advance, preferably in a single bag for convenience.
• Maintain Line Integrity: Always arrange for a straight-line pull and avoid towing or lowering loads with the winch.
• Rope Management: Pull out most of the rope but leave at least 10 wraps on the drum. Maintain tension on the rope, especially if it’s a metal one.

4. Operational Safety

• Distance Matters: Stay at least twice the winch motor’s stopping distance away from the fairlead to ensure safety.
• Rigging Safety: Use a parachute rig between each anchor point, turn, or fulcrum, and only use hand signals to communicate—no shouting.
• Hazard Awareness: Visualize potential points of failure in the rigging and stay clear of them.
• Closed-Rope Systems: Opt for closed-rope systems whenever possible, avoiding open hooks unless necessary.

5. Execution

• Implement Methodically: Slow down and execute your plan systematically to avoid mistakes and ensure efficiency.

By adhering to these principles, you can conduct winching operations safely and effectively.



How should you plan to drive through a specific obstacle?

Planning to Drive Through a Specific Obstacle

1. Get Out and Assess the Obstacle
   Before you even think about traversing the obstacle, step out of your vehicle and give it a thorough inspection. Walk the entire length, examining every potential challenge it presents.
2. Evaluate Your Vehicle and Skill Set
   Consider the capabilities of your vehicle and your own driving skills. Are you well-equipped to handle this obstacle? Your level of preparedness will dictate how you approach it.
3. Develop a Recovery Plan
   Envision the worst-case scenario. If things go wrong, how will you recover? It’s crucial to have a preliminary plan in place. Consider all angles and potential “trouble spots” that could challenge you.
4. Reassess If Necessary
   If you’re uncertain about certain areas, take another walk and think critically. Use all your senses and judgment to foresee any possible difficulties.
5. Know Your Limits
   If the potential consequences of failure are too high and beyond what you’re willing to accept, err on the side of caution and find an alternative route. Safety should always be your top priority.

By following these steps, you’ll be well-prepared to tackle obstacles safely and confidently.



How did the author begin working with winches?

I started working with winches at a young age, much earlier than most. My journey began when I was just nine years old and landed a job assisting in cutting trees for pulpwood. Under the guidance of an experienced woodsman, I quickly learned the ropes. After mastering the use of a chainsaw, we would climb into an old 6×6 truck from the 1930s and head deep into the forest. That’s where I got hands-on experience with winches, crucial tools for hauling heavy timber and navigating the rugged terrain.



What are the signs that synthetic winch lines need to be replaced?

If a winch rope is compromised, it’s time to replace it. Synthetic winch lines are particularly vulnerable to UV exposure and high heat. Look for signs such as color fading or actual melting as clear indicators that it’s time for a new line.

Regular Maintenance Matters

Even if there are no visible signs of damage, it’s wise to follow a proactive replacement schedule. For instance, ropes should ideally be replaced every two years, especially if they are frequently used. Consistent usage, anywhere from three to seven days a week, can significantly affect the lifespan of your winch lines.

Signs to Watch For

• Color Fading: UV exposure can cause synthetic lines to lose their color, indicating they are weakening.
• Melting: High heat can lead to actual melting, which severely compromises the strength and safety of the rope.

By staying vigilant and adopting a regular replacement schedule, you can ensure your winch is always ready for the next adventure.



How should you position and secure a tree-saver strap when setting up a winch anchor?

Using a static tree trunk protector around a tree instead of a chain or winch rope will help ensure the tree’s continued existence. Position your strap to give the most straight pull as well as the optimum vertical angle. I usually wrap the strap around itself so that under load it grips the tree rather than sliding down. This can be done to help raise the nose of the vehicle up a bit and/or to raise the rope so it does not come in contact with the ground and chafe or even part. This “cable rigging” is a technique adapted from logging.

Take care not to overdo it, as you could end up in a situation reminiscent of The Gods Must Be Crazy. I have personally shimmied up trees to cable the rig and relieve a good bit of terrain resistance. It works well if you slow down and consider all the forces involved, as well as the worst-case scenarios.

Remember, and remind everyone around you of the possibility that the anchor strap and rope could slide down with great force. Evergreens, especially spruce and fir trees, love to let the strap break through the bark. The strap will take off the bark like paper off a straw. Not good for you, and deadly for the tree. Do not attach to a tree or anything else out there if you cannot minimize damage or avoid it entirely.



How should you secure a D-shackle when setting up a winch rig?

If using a hard shackle, hand-tighten it until it’s tight and then quarter-turn it back. This ensures the opportunity to easily release the pin from the shackle after recovery.

Next, rotate the shackle 180 degrees, so the pin is on the tree saver side and the arched side faces the winch’s hook. This adjustment is crucial because the metal edge of the hook or thimble has minimal surface contact with the shackle. By positioning it this way, the shackle will self-center at the apex of the arch, maintaining a better geometric position.

Additionally, if the hook is on the clevis pin, it will slide to the corner under tension, which can damage the exposed threads of the pin. By having the strap in contact with the clevis pin, you ensure a much larger contact patch, reducing the risk of pin damage and enhancing the stability of your setup.

Always follow these steps to secure your D-shackle properly and ensure a safe, efficient recovery process.

---
