Open-C versus Boxed

There is a war being waged on the truck battlefront. For years, American manufacturers touted their Open-C channel frames were designed to flex, while the Japanese market reveled in their fully boxed frames, with their strength and their other advantages they had over the American market. How really true was all of this?

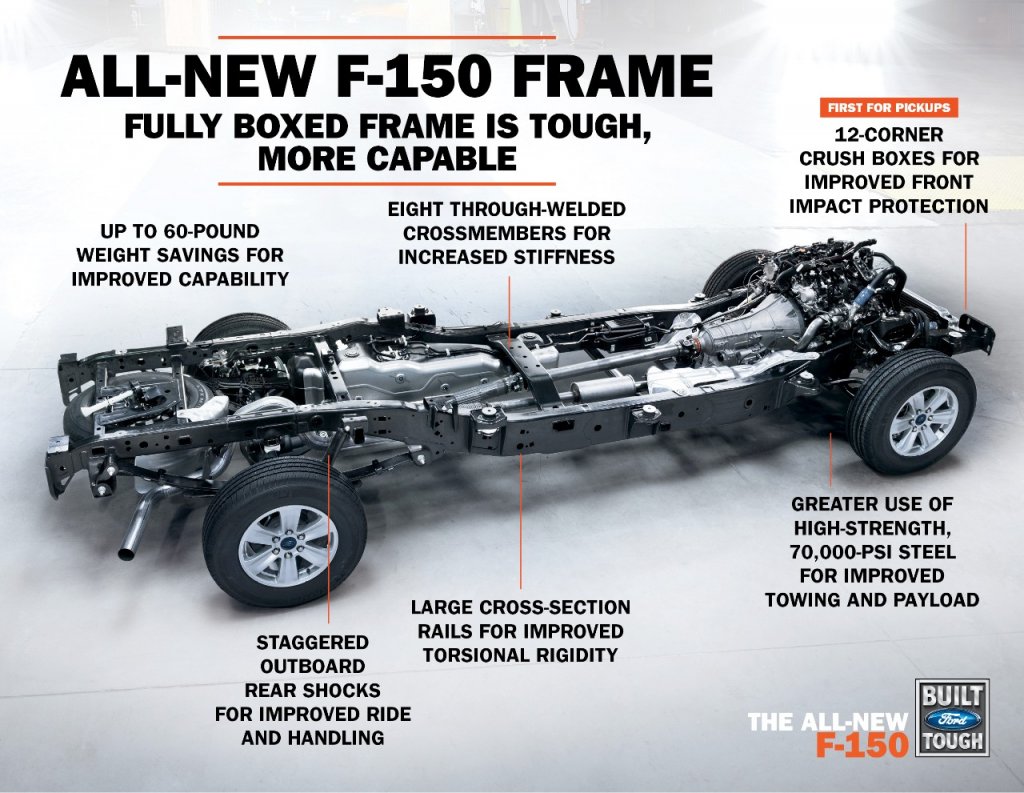

Well, there was a reason why it took all the way until 2017 for Ford to finally relent and build a hydro-formed box steel frame, and it turns out it really was about flex. Modern day boxed frames are made using a process called hydro-forming. Hydro-forming is where a sheet of steel is placed into a one-sided die, which is then sealed, and hydraulic fluid is then pumped into the die at incredibly high pressures to force the metal into complex shapes. These super complex shapes would not be able to be stamped by traditional tool and die stamping processes.

These incredibly complex structures have allowed the use of extremely high-pressure steels, at thinner walls than before, to save weight and offer a super rigid backbone for the truck to ride on. This made for a very challenging engineering issue to overcome, as before, the suspension flex in a C-channel frame allowed some of the road energy to be absorbed by the frame itself, lessening the work load on the suspension. The rigidity also poses other issues, as well. Extreme rigidity means that there is a very low spring tolerance to the frame, which ultimately leads to stress cracking if pushed beyond the limits of what the frame was engineered for. Alternatively, Open-C channel frames are made from thick lower pressure steel, with a low harness temper that can flex millions-upon-millions of cycles and never develop a stress fracture.

While Japanese manufacturers were highlighting the strength, ride and handling of their smaller trucks and SUVs, American truck manufacturers were losing the consumer battle trying to weigh the durability, ease of repair and up-fitting (commerical/industrial) of C-channel and investing in boxed frames. Ultimately, Chrysler, General Motors and Ford relented and started manufacturing their trucks with semi-boxed frames in the late 1990s. These frames featured boxing under the engines and front suspensions to ensure a very rigid surface to mount to, and put increasing number of cross members in to improve rigidity, while still allowing frame flex to occur in the remaining portion of the frames, which were open C-channel.

This was working great for the American manufacturers through the dot-com bubble of the early 2000s, when excess was the American way. Chrysler and General Motors started experimenting in the first attempts of fully-boxed frames in heavy duty trucks. Then, the U.S. recession started in 2005 and American manufacturers were hit with incredibly low sales. Chrysler and General Motors had to be bailed out by the US Government and Ford saw the fires and mortgaged everything it owned while it still could, and escaped financial bankruptcy. In the ruins of the US Automotive industry, The Big Three went at each other’s throats in an effort to keep their trucks on-top.

All of a sudden, the Big Three were drumming every cent of R&D money they had into developing a new breed of trucks that was going to one-up each other and take the throne of the market. Now we are here, with every manufacturer offering a fully-boxed frame on their trucks, with the exception of three models.

Who you might ask? Toyota’s Tacoma and Tundra pick-ups and Ford’s F-550 truck.

Why you might ask? Frame flex is essential when carrying heavy-loads in extremely demanding scenarios that might lead to stress cracking. And in Toyota’s case—it is a lot easier to keep a C-channel frame from rusting to death.

If you would like to know more about the mad science behind hydro-forming steel, Wikipedia has a great article and series of animations on how the process works.

---

FREQUENTLY ASKED QUESTIONS

What are the advantages of a boxed frame over an open-channel frame in terms of structural integrity?

Advantages of Boxed Frames in Terms of Structural Integrity

When evaluating the structural integrity of vehicle frames, boxed frames offer distinct advantages over open-channel frames. Here’s why:

1. Superior Strength and Rigidity:
   • A boxed frame essentially functions as a tube, which is the strongest structural form. This design offers enhanced rigidity, making it ideal for withstanding the stresses encountered by vehicles under demanding conditions.
   • The uniform distribution of stress throughout a boxed frame minimizes weak points and increases the overall strength of the vehicle’s architecture.
2. Optimal Suspension Support:
   • With a robust structure, boxed frames provide a solid foundation for suspension systems. This ensures that the suspension components can perform their roles effectively without compromising the vehicle’s integrity.
   • This separation of roles—letting the suspension manage compliance and the frame handle structural support—maximizes performance.
3. Weight Efficiency:
   • Contrary to some beliefs, boxed frames can be crafted to be lighter than open-channel frames while maintaining the same level of torsional rigidity. This weight efficiency does not sacrifice strength, ensuring robust performance without adding unnecessary bulk.
4. Resilience Against Design Flaws:
   • Although boxed frames are sometimes thought to be more susceptible to issues like rust due to enclosed spaces, proper design and drainage can effectively mitigate these risks.
   • The widespread use of boxed frames in various high-performance and off-road vehicles underscores their reliability when properly engineered.
5. Resistance to Flexibility Concerns:
   • Open-channel frames may require thicker steel to compare in rigidity, but this adds weight without improving strength.
   • Boxed frames, with their enhanced torsional rigidity, offer a more flexible approach to design where necessary, ensuring stability without compromising structural integrity.

In conclusion, boxed frames deliver unparalleled structural integrity by providing a strong, lightweight, and efficiently engineered solution tailored to meet the demands of modern vehicles. Their ability to support both the suspension and the entire vehicle structure efficiently makes them the superior choice in automotive frame design.



How do boxed and open C-channel frames compare in terms of torsional rigidity and rust resistance?

When it comes to torsional rigidity, boxed frames have the upper hand. They are typically constructed as a continuous tube, offering superior structural integrity. This is why high-performance vehicles like race cars and trucks rely on tubular designs, as they provide optimal rigidity and strength.

Torsional Rigidity

• Boxed Frames: These are robust and maintain structural integrity under stress, keeping your vehicle stable and secure. The enclosed design distributes forces evenly, reducing flex.
• Open C-Channel Frames: These frames generally require thicker steel to approach the rigidity a boxed frame naturally possesses. While they can offer reasonable strength, they often need additional support to match the torsional rigidity of their boxed counterparts.

Rust Resistance

As for rust resistance, open C-channel frames have some advantages. They may feature thicker steel, which initially offers more resistance to corrosion. Additionally, their open design allows moisture to escape more easily, reducing the risk of rust accumulation in hidden areas.

However, the design challenges of boxed frames do not inherently make them more susceptible to rust. It’s more about the design execution and protective measures like coatings and drainage provisions that determine how well a frame resists corrosion. Many boxed frames are engineered to manage water drainage effectively, maintaining rust resistance.

In summary, while boxed frames excel in providing torsional rigidity, the choice between boxed and open C-channel frames should also consider the specific design measures each takes to resist rust. Both frame types have their strengths, ultimately contributing to vehicle stability and longevity.



How do frame designs impact vehicle durability and performance in off-road conditions?

How Frame Designs Influence Vehicle Durability and Performance Off-Road

When it comes to off-road capability, the design of a vehicle’s frame is crucial. A boxed frame typically outperforms an open-channel frame, offering superior structural integrity. This enclosed design creates a strong tubular structure, similar to what you’d find in race cars and trucks, ensuring that the vehicle can handle the challenges of rugged terrains effectively.

Boxed Frames vs. Open-Channel Frames

1. Strength and Rigidity
   A fully boxed frame provides better strength and rigidity. This is essential off-road, where vehicles encounter harsh conditions, uneven terrain, and heavy impacts. Vehicles like the Jeep Wrangler and Mercedes-Benz G-Wagen leverage boxed frames to enhance durability, supporting not just the vehicle’s body and suspension but also all attached components.
2. Suspension Dependence
   The suspension system should absorb most of the off-road impacts—not the vehicle’s frame. By having a stronger frame, the suspension can be finely tuned for compliance without compromising the overall structural support. A robust frame ensures that the suspension has a solid base, improving overall vehicle performance.
3. Engineering Intent
   Some vehicles, like the Mercedes Unimog, use open-channel frames that incorporate flexibility for specific purposes. This is often needed if the vehicle is expected to twist and flex under operation, but it’s generally the exception rather than the rule for high-performance off-road vehicles.
4. Material Considerations
   While open-channel frames do sometimes use thicker materials for maintaining rigidity, this design may fall short in overall durability. Although the thickness can provide resistance to rust, proper design and material selection in boxed frames can mitigate corrosion concerns by ensuring adequate drainage and protection against water retention.

In summary, frame design significantly impacts a vehicle’s durability and performance in demanding off-road conditions. The choice between a boxed and an open-channel frame depends on the desired balance between rigidity, flexibility, and resistance to environmental factors.



Are open-channel frames intrinsically more rust-resistant than boxed frames?

When comparing open-channel frames to boxed frames, some argue that the former may be intrinsically more rust-resistant. Here’s why this notion persists:

1. Material Thickness: Open-channel frames generally feature thicker steel. This thickness can potentially enhance resistance to rust, as the material provides more substance before corrosion penetrates through.
2. Design Features: The open nature of these frames often means fewer hidden spaces where moisture and debris can accumulate. With fewer crannies to trap water and grime, rust has fewer opportunities to develop.

However, it’s crucial to understand that rust resistance largely depends on the design and maintenance of the frame rather than the type itself:

• Design Considerations: Not all boxed frames are susceptible to rust just because they are enclosed. Well-designed boxed frames include features that prevent water retention and promote drainage, significantly reducing the risk of corrosion.
• Market Comparisons: Many successful boxed frames exist across various automotive markets without rust issues. Their durability typically owes to effective engineering solutions rather than being inherently inferior to open-channel frames.

In conclusion, while open-channel frames might avoid some rust risks due to their design and material thickness, the effectiveness of rust resistance is ultimately determined by design quality and maintenance practices, rather than frame type.



What is the significance of the fully boxed frame in high-quality four-wheel-drive vehicles?

Understanding the Importance of a Fully Boxed Frame in Superior 4WD Vehicles

When it comes to designing high-quality four-wheel-drive vehicles, one critical feature stands out: the fully boxed frame. This structural component is vital for ensuring exceptional durability and off-road performance.

Enhanced Structural Integrity

A fully boxed frame offers unparalleled structural integrity. Unlike other frame types, its closed design provides reinforcement on all sides, delivering robust support for the vehicle’s suspension and overall structure. This enhancement translates into increased strength and rigidity, which are essential for tackling challenging terrains that demand maximum resilience.

Superior Load-Bearing Capabilities

Vehicles equipped with a fully boxed frame can carry heavier loads without compromising stability and performance. This is crucial for off-road enthusiasts who require reliable transport for gear and equipment in rugged environments. The design of the frame helps distribute weight evenly, preventing undue stress on any single part of the vehicle’s structure.

Improved Suspension Compliance

From a performance perspective, a fully boxed frame allows the suspension system to function optimally. By confining flex to the suspension rather than the vehicle’s structure, it provides a smoother ride and better handling across unpredictable surfaces. This translates to a more controlled driving experience, whether navigating rocky trails or sandy dunes.

Real-World Reliability

Brands known for creating enduring all-terrain vehicles, such as Land Rover and Jeep, prioritize the use of fully boxed frames. Their inclusion of this frame type in models like the Defender and Wrangler underscores their commitment to durability and performance. These vehicles are built to endure, consistently proving their mettle in diverse environments, from military applications to adventurous expeditions.

In summary, the fully boxed frame is not just a component but a cornerstone of engineering excellence in four-wheel-drive vehicles. It enhances strength, load-bearing capability, and suspension performance, providing a foundation that supports serious off-road adventures with confidence and reliability.



How did Toyota address frame rust issues in its vehicles?

Toyota faced significant challenges with rust developing in the fully boxed frames of their first-generation trucks, which led to costly replacements for many affected owners. The underlying culprits were attributed to sub-par steel used by a supplier, with the design allowing water to become trapped inside the frame rails, exacerbating the rust.

To tackle this issue, Toyota reevaluated their frame design and material sourcing. They moved away from the fully boxed frame that led to these moisture retention problems. This change not only aimed to prevent rust by improving drainage and ventilation but also offered a strategic cost-saving advantage.

The solution involved adopting an open-channel frame for their newer models, effectively reducing the risk of rust by allowing water and debris to escape more easily. This design change underscores Toyota’s commitment to resolving past issues while optimizing manufacturing processes.



What are the challenges associated with bolting accessories to boxed frames?

Challenges of Bolting Accessories to Boxed Frames

When it comes to attaching accessories to vehicle frames, boxed frames present specific challenges compared to open-channel frames. Here’s a breakdown of the issues you might encounter:

• Double-Layer Drilling: Boxed frames feature two layers of steel, requiring you to drill through both. This isn’t just labor-intensive but also demands precision to align the holes perfectly.
• Longer Fasteners Needed: The double thickness means you’ll need longer bolts to bridge the gap. Sourcing the right size fasteners can sometimes be tricky and may limit your options for readily available hardware.
• Limited Access: Accessing the interior of a boxed frame can be challenging, limiting the ease with which bolts and nuts can be securely fastened. This can demand extra tools or special techniques.
• Increased Installation Time: Due to the need for longer bolts and precise drilling, the process can take significantly longer, adding complexity to what might otherwise be a straightforward task with an open-channel frame.

These factors can make working with boxed frames more demanding, and often require additional planning and tools to accommodate accessory installation effectively.



How have frame rust issues affected Toyota’s reputation and supplier relationships?

Impact of Frame Rust Issues on Toyota’s Reputation and Supplier Relationships

Toyota’s Reputation at Stake

Frame rust problems have been a significant blemish on Toyota’s otherwise strong reputation for reliability. These issues primarily stemmed from frames that lacked adequate corrosion protection. Such problems have raised questions among consumers regarding the quality and durability that Toyota has long been known for. This erosion of trust can influence potential buyers to consider alternatives, thereby impacting Toyota’s market share and brand perception.

Supplier Accountability

The root cause of the rust issues was traced back to inconsistencies with the suppliers responsible for manufacturing these frames. In particular, certain suppliers fell short of Toyota’s stringent manufacturing standards, which included essential corrosion resistance specifications. The fallout from this has been twofold: it not only highlighted the need for Toyota to closely monitor its suppliers but also spurred discussions about supplier accountability and quality assurance.

Supplier Relationships and Adjustments

Despite these challenges, Toyota has continued to collaborate with the implicated suppliers, though one might wonder why such partnerships persist. This relationship endurance suggests efforts to strengthen oversight and refine quality control measures rather than sever ties completely. However, the incident underscores the critical importance of maintaining rigorous checks to prevent such issues from recurring.

Lessons from the Land Cruiser

An interesting contrast is observed in the Land Cruiser, a model known for its fully boxed frames yet notorious for not facing similar rust issues. Notably, the frames for these models have been sourced from different suppliers specialized in meeting specific quality standards. This divergence further illuminates the importance of choosing the right partners when it comes to core vehicle components.

In summary, frame rust issues have challenged Toyota to rekindle trust while emphasizing the necessity of stringent supplier governance. It serves as a poignant reminder of how supply chain vulnerabilities can ripple through consumer perception, affecting both brand legacy and future supplier engagements.



What are the potential reasons for Toyota’s continued use of certain suppliers despite past issues?

Potential Reasons for Continuing with Established Suppliers

When evaluating why an automaker might stick with a particular supplier despite previous challenges, several strategic considerations often come into play:

1. Contractual Obligations: Long-term contracts may bind a company to continue using a supplier. These agreements are typically designed for stability and predictability and could include specific terms outlining the duration of the partnership.
2. Proven Capability in Rugged Conditions: Suppliers that have demonstrated their ability to produce components capable of enduring harsh environments are invaluable. An automaker seeking to cater to markets where vehicles are subjected to extreme conditions—such as off-road terrains or harsh weather—might favor suppliers with a track record of reliability in these scenarios.
3. Cost-Effectiveness: Switching suppliers can incur significant costs, both in terms of financial outlay and time. Established suppliers already familiar with the company’s standards and processes may offer better pricing through economies of scale, ultimately impacting the bottom line favorably.
4. Quality and Innovation: While past performance can be an issue, suppliers that continuously innovate and improve their products might retain their contracts. A history of addressing past mistakes and enhancing product quality can foster trust and long-term collaboration.
5. Supply Chain Stability: Established suppliers often provide a stable supply chain, which is crucial for maintaining production schedules. The reliability of receiving parts on time and in the needed quantities can outweigh past issues, especially in a globalized market.

By considering these factors, automakers can make informed decisions about maintaining relationships with suppliers, balancing immediate concerns with strategic advantages.



What are the main differences between C-Channel and fully boxed truck frames?

Open-C versus Boxed

There is a war being waged on the truck battlefront. For years, American manufacturers touted their Open-C channel frames were designed to flex, while the Japanese market reveled in their fully boxed frames, with their strength and other advantages over the American market. How really true was all of this?

Well, there was a reason why it took all the way until 2017 for Ford to finally relent and build a hydro-formed box steel frame, and it turns out it really was about flex. Modern-day boxed frames are made using a process called hydro-forming. Hydro-forming is where a sheet of steel is placed into a one-sided die, which is then sealed, and hydraulic fluid is then pumped into the die at incredibly high pressures to force the metal into complex shapes. These super complex shapes would not be able to be stamped by traditional tool and die stamping processes.

These incredibly complex structures have allowed the use of extremely high-pressure steels, at thinner walls than before, to save weight and offer a super rigid backbone for the truck to ride on. This made for a very challenging engineering issue to overcome, as before, the suspension flex in a C-channel frame allowed some of the road energy to be absorbed by the frame itself, lessening the workload on the suspension. The rigidity also poses other issues, as well. Extreme rigidity means that there is a very low spring tolerance to the frame, which ultimately leads to stress cracking if pushed beyond the limits of what the frame was engineered for. Alternatively, Open-C channel frames are made from thick lower pressure steel, with a low harness temper that can flex millions-upon-millions of cycles and never develop a stress fracture.

Structural Strength and Flexibility

The strongest structural member is a tube, which is why race cars and trucks often utilize tubular construction. Boxed frames, akin to these tubes, offer superior rigidity and strength, vital for supporting both suspension and the vehicle’s components. This is a stark contrast to Open-C channel frames, which must use thicker steel to maintain similar rigidity, though they excel in flexibility.

Real-World Applications

Fully boxed frames are the choice for many high-quality vehicles due to their robustness. Examples include popular models like the Jeep Wrangler and military vehicles, known for their durability and performance in demanding conditions. The engineering logic here is simple: the frame should provide a solid foundation, leaving the suspension to handle compliance.

Practical Advantages and Considerations

While some argue that boxed frames are heavier, this isn’t necessarily true. Modern techniques like hydro-forming allow them to be lighter yet stronger than their Open-C counterparts. However, Open-C frames do offer an advantage in ease of assembly, as they provide straightforward access for bolting components, a minor convenience compared to the comprehensive benefits of boxed frames.

Critics point out potential rust issues in boxed frames, but this is more a design flaw than a frame weakness. Properly designed boxed frames resist rust just as well as any other design, as evidenced by numerous vehicles without such problems.

In summary, the choice between Open-C and boxed frames involves balancing the need for flexibility against the requirement for strength and rigidity. Each has its place, but the trend towards boxed frames reflects their undeniable advantages in performance and durability.



What are the potential drawbacks and advantages of C-channel frames?

A potential advantage of C-channel frames is the simplicity in attaching components, as they provide easy access for drilling and bolting. However, this is considered a minor benefit compared to the enhanced strength and durability offered by fully boxed frames.



What are the common misconceptions about the weight of fully boxed frames?

A common misconception is that fully boxed frames are heavier than open-channel frames. In reality, a boxed frame can be lighter while maintaining the same level of torsional rigidity due to its design efficiency.



What are the engineering principles behind frame rigidity and suspension compliance?

The engineering principle is that suspension compliance should be integrated into the suspension system itself, rather than the vehicle’s frame. The frame’s primary role is to support the vehicle’s components, and a rigid frame ensures that all suspension dynamics are handled by the suspension system alone.



Which vehicles commonly use fully boxed frames?

Fully boxed frames are commonly used in vehicles such as the Toyota Land Cruiser, Land Rover Defender, Mercedes-Benz G-Wagen, and Jeep Wrangler. These examples illustrate the popularity and effectiveness of boxed frames in both consumer and specialized vehicles.



Why are fully boxed frames considered stronger?

Fully boxed frames are considered stronger because they mimic the structure of a tube, which is the most robust type of structural member. This design provides superior strength and rigidity, making it ideal for high-performance applications like race cars and military vehicles.



What are the arguments for and against the use of open-channel frames in trucks?

There is a war being waged on the truck battlefront. For years, American manufacturers touted their Open-C channel frames were designed to flex, while the Japanese market reveled in their fully boxed frames, with their strength and their other advantages they had over the American market. How really true was all of this?

Open-C channel frames, made from thick lower pressure steel with a low hardness temper, can flex millions-upon-millions of cycles and never develop a stress fracture. This flex allows the frame to absorb road energy, reducing the workload on the suspension. However, the flip side to this flexibility is a susceptibility to stress cracking if the frame is pushed beyond its engineered limits.

Proponents of open-channel frames argue that the thicker steel is more resistant to rust, as it lacks the crannies that can trap water and debris. Conversely, the rigidity of boxed frames can lead to issues if not designed properly, as seen with certain problematic models. Yet, this doesn’t imply boxed frames are inferior; rather, they require precise engineering to prevent water ingress and ensure durability.

While Japanese manufacturers focused on the strength, ride, and handling of their smaller trucks and SUVs, American truck manufacturers debated the merits of durability, ease of repair, and up-fitting associated with open-channel frames. Critics point out that boxed frames are not necessarily heavier. In fact, a well-designed boxed frame can be lighter than an open-channel frame with comparable torsional rigidity.

Ultimately, Chrysler, General Motors, and Ford relented and started manufacturing their trucks with semi-boxed frames in the late 1990s. These frames featured boxing under the engines and front suspensions to ensure a very rigid surface to mount to, with an increasing number of cross members to improve rigidity while still allowing frame flex in the remaining open C-channel sections.

The only significant advantage of open-channel frames, aside from their lower cost, is the simplicity in attaching components. With a single thickness of steel, it’s easier to bolt on accessories, whereas boxed frames require drilling through two layers and using longer bolts. However, this is a minor consideration for most users.

In this evolving landscape, the debate continues as manufacturers strive to balance cost, durability, and performance in their frame designs.



What common misconceptions exist regarding boxed frames?

A frequent misconception is that boxed frames are inherently heavier than open-channel frames. In reality, boxed frames can be designed to be lighter while offering the same or greater structural rigidity, debunking this myth.



What is a practical advantage of open-channel frames in terms of modification?

Open-channel frames offer easier modification options since they consist of a single layer of steel, making it simpler to drill and attach components. This ease of access is beneficial for custom installations and modifications.



What case studies illustrate the effectiveness of boxed frame designs?

The challenges faced by certain Toyota boxed frames, which were not adequately designed to prevent water ingress, serve as an example. However, many other boxed frame designs on the market, including earlier Toyota models, demonstrate successful rust resistance and durability.



Are boxed frames heavier than open-channel frames?

Contrary to some beliefs, boxed frames can be engineered to be lighter than open-channel frames while maintaining the same level of torsional rigidity. This is due to the efficient use of materials in boxed frames.



Why might open-channel frames be more resistant to rust?

Open-channel frames are often made from thicker steel, which can be more resistant to rust due to the absence of small crevices that can trap moisture and debris. This design minimizes the risk of corrosion compared to frames with enclosed spaces.



How did American pickup manufacturers’ approach to truck frame design change over the last 20 years?

In the late 1990s, a seismic shift began in the design philosophy of American pickup trucks—a shift that saw manufacturers like Chrysler, General Motors, and Ford embrace semi-boxed frames. These frames ingeniously combined boxing under the engines and front suspensions to offer a rigid mounting surface, while still allowing some frame flex with open C-channel sections. This innovation maintained a balance between rigidity and flexibility, which was crucial for a comfortable ride.

As the dot-com bubble swelled in the early 2000s, excess became the norm. American manufacturers thrived, pushing boundaries by experimenting with fully-boxed frames, initially in heavy-duty trucks. Yet, as the U.S. Recession hit in 2005, sales plummeted, triggering a crisis that saw Chrysler and General Motors bailed out by the government, while Ford narrowly avoided financial ruin by mortgaging its assets.

In the aftermath, an intense rivalry emerged among the Big Three. They funneled every available cent into research and development, leading to a new era of trucks featuring fully-boxed frames. This design evolution was a response to the realization that trucks could be both robust and comfortable—a notion that gained traction with the introduction of higher torsional rigidity. Manufacturers began using high-strength and ultra-high-strength steels to construct not just side rails, but even some crossmembers, resulting in a stronger, more durable truck.

Today, we see the fruits of these efforts, with nearly every manufacturer offering fully-boxed frames, save for a few exceptions. This journey from semi-boxed to fully-boxed frames underscores a notable about-face in the industry, driven by the desire to combine durability with a smooth ride, setting a new standard for modern pickups.



What was the motivation behind these design changes?

The primary motivation was to maintain a comfortable ride while enhancing the strength and durability of the trucks, making them more robust overall.



What types of trucks were affected by these changes?

The advancements were initially applied to half-ton pickups and later extended to include 3/4-ton and 1-ton models.



Which manufacturers were involved in these changes?

The manufacturers leading these changes were Ford, Chevrolet, and Ram, who integrated these advanced frame designs into their trucks.



What specific advancements were made in truck frame design?

Truck frames evolved to feature higher torsional rigidity, culminating in the adoption of fully boxed chassis. Additionally, manufacturers began using high-strength and ultra-high-strength steels for both frames and some crossmembers.



How do the design decisions of truck manufacturers affect their market competitiveness?

There is a war being waged on the truck battlefront. For years, American manufacturers touted their Open-C channel frames were designed to flex, while the Japanese market reveled in their fully boxed frames, with their strength and their other advantages they had over the American market. How really true was all of this?

While Japanese manufacturers were highlighting the strength, ride and handling of their smaller trucks and SUVs, American truck manufacturers were losing the consumer battle trying to weigh the durability, ease of repair and up-fitting (commercial/industrial) of C-channel and investing in boxed frames. Ultimately, Chrysler, General Motorsand Ford relented and started manufacturing their trucks with semi-boxed frames in the late 1990s. These frames featured boxing under the engines and front suspensions to ensure a very rigid surface to mount to, and put increasing number of cross members in to improve rigidity, while still allowing frame flex to occur in the remaining portion of the frames, which were open C-channel.

Understanding the Frame Debate: Let’s be clear—a boxed frame is better in virtually every way than an open-channel frame. The strongest structural member there is is a tube. That’s why race cars and race trucks are built with tubes, not open C-channel members. The proper place to engineer suspension compliance is in the suspension, not the structure responsible for supporting both the suspension and all the running gear and bodywork on the vehicle.

This was working great for the American manufacturers through the dot-com bubble of the early 2000s, when excess was the American way. Chrysler and General Motors started experimenting in the first attempts of fully-boxed frames in heavy duty trucks. Then, the U.S. Recession started in 2005 and American manufacturers were hit with incredibly low sales. Chrysler and General Motors had to be bailed out by the US Government and Ford saw the fires and mortgaged everything it owned while it still could, and escaped financial bankruptcy. In the ruins of the US Automotive industry, The Big Three went at each other’s throats in an effort to keep their trucks on-top.

Market Implications: The Toyota Land Cruiser, the Land Rover Defender, the Mercedes-Benz G-Wagen, and the Jeep Wrangler—all employ fully boxed frames. So does the new Chevrolet Colorado, set to take a chunk out of the Tacoma’s market share. These examples highlight why fully boxed frames have become a benchmark in durability and market competitiveness.

All of a sudden, the Big Three were drumming every cent of R&D money they had into developing a new breed of trucks that was going to one-up each other and take the throne of the market. Now we are here, with every manufacturer offering a fully-boxed frame on their trucks, with the exception of three models. The military’s HMMWV? A fully boxed frame. With each design decision, the stakes in the truck battlefront have only intensified, making frame design a pivotal factor in market dominance.

---
